DS-7108HI-S series Net DVR User Manual
51

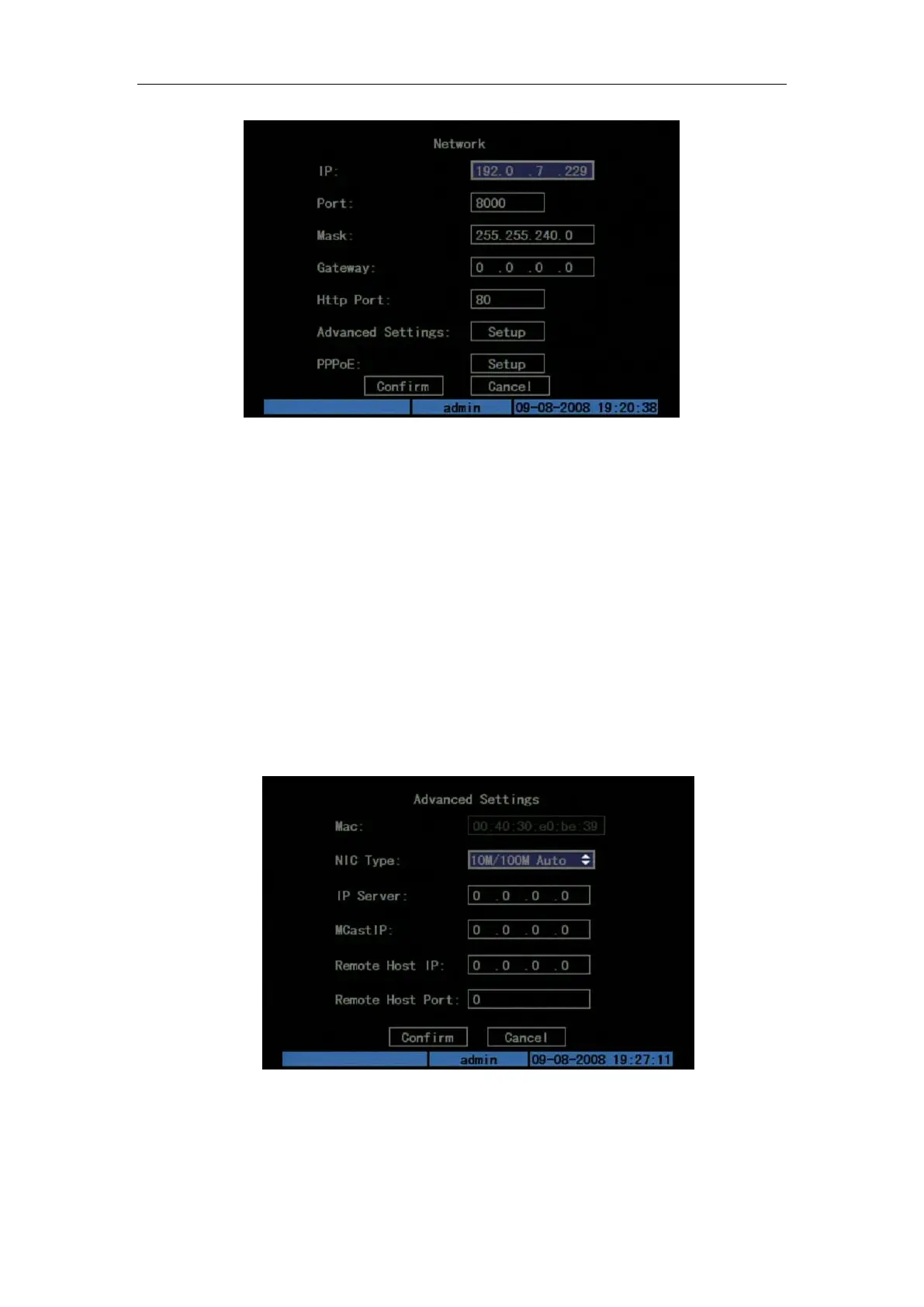

Fig. 5.28 network setup
“Network” menu description:
IP address: This IP address must not be conflict with other IP. If there is DHCP server in
network, you can set the IP as “0.0.0.0”, save and reboot DVR. In reboot process, DVR will
search the DHCP server and get one dynamic IP address. This item will display the dynamic IP
address. If DVR uses PPPoE function, also DVR can dialup into internet and this item will display
the dynamic internet IP address.
Port: Network access port number, must be larger than 2000.
Mask: This is sub net mask.
Gateway: The gateway IP is used to communicate in different network segments
Http Port: The port is for IE browser. The default value is 80. It can be modified.
Advanced settings: Move “Active frame” to “Advanced settings” then press “enter” to enter
the configure interface. Shown as Fig.5.29 below
Fig. 5.29 Advanced network setup
Advanced setup descriptions:
Mac: The physical address of the device, which can’t be modified
NIC type: Default is “10M/100M Auto”, the other options are: 10M Half-Dup, 10M
