HIKVISION DS-7108HI-S Series

DS-7108HI-S series Net DVR User Manual
63

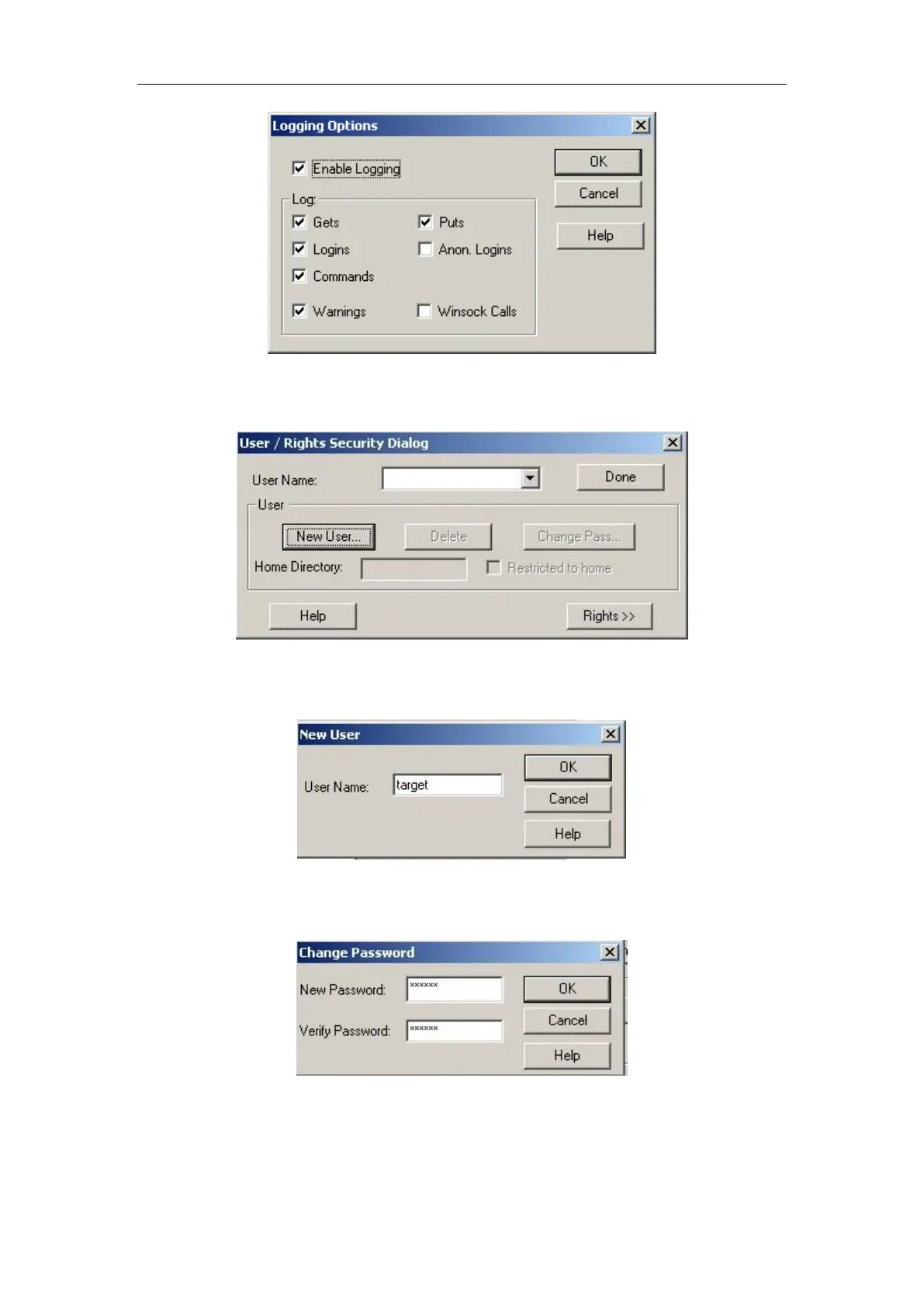

Fig. 7.2 setup parameters
3. Select “Users/rights” under “Security” menu item. The following dialog box will be
pop-up.
Fig. 7.3 Setup username
4. Create new user. Click “new user’. New user dialog pops up. Input user name “target”.
Click “OK”.
Fig. 7.4 user name
5. In the password dialog, input password “target” in “New Password” and “Verify
Password” edit box. Click “OK” to save and exit the dialog box.
Fig. 7.8 Password
6. In the “User/Rights Security” Dialog, select “User Name” as “target”. In “Home
Directory” edit box, input the path where the firmware file (digicap.dav) is placed. Then press
“Done” to exit.
