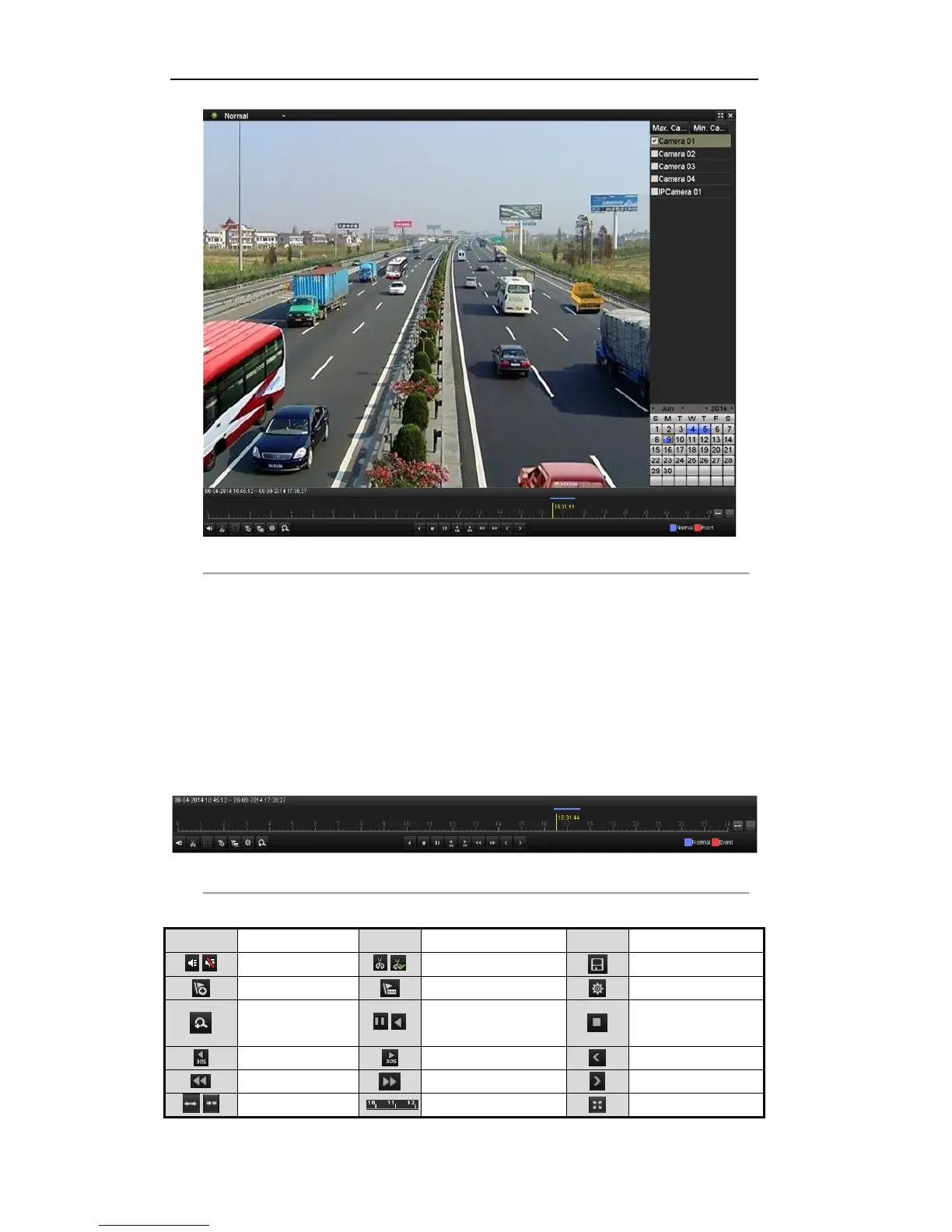

Figure 6. 3 Playback Interface
Check the checkboxes to select the channel(s), and then the video from the selected channels will be
played back synchronously. Up to 16 channels can be set for synchronous playback.
Click the Max. Camera for Playback tab, and you can play back the video from 16 channels at a time.
Click the Min. Camera for Playback tab, and you can play back the video from only one channel.
Dates marked in different colors:
No record files in this day.
There is record file(s) in this day (not current day).
There is event recording file(s) in this day (not current day).
Mouse cursor is located.
Figure 6. 4 Toolbar of All-day Playback
Detailed Explanation of All-day-playback Toolbar
Button
Operation
Button
Operation
Button
Operation
/
Mute/Audio on
/
Start/Stop clipping
Save clip(s)
Add default tag
Add customized tag
Tag management
Digital Zoom
/
Pause/
Play Reverse
Stop
30s backward
30s forward
Previous day
Slow forward
Fast forward
Next day
/
Scaling up/down
Process bar
Full Screen

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
