HIKVISION DS-7200 User Manual

User Manual of DS-7200/7300/8100 Series DVR
110
one region can be set.
 Motion Detection
Click the button and then click and draw the mouse to set the detection area manually. You can also
click the button to set the full screen as the detection area.
5. Click the to search, and then the result will be displayed as in the progress bar of the Smart
Playback interface.
Or you can click the button to clear all the set areas.
6. Click the button to play

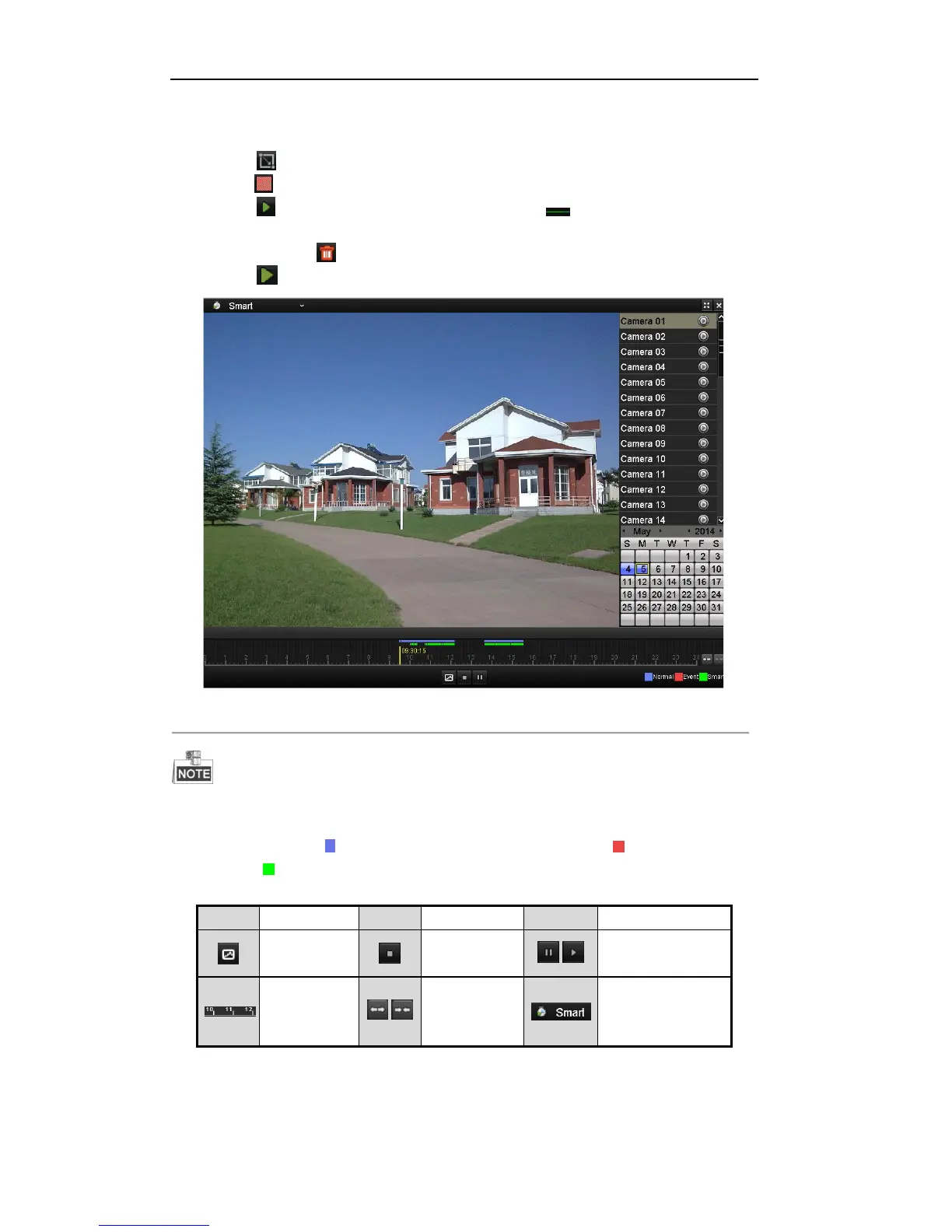

Figure 6. 15 Smart Playback Interface
 Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to
locate special frames.
 About video type bar: represents normal recording (manual or schedule); represents event
recording; represents smart search recording.
Table 6. 2 Detailed Explanation of Smart Playback
Button
Operation
Button
Operation
Button
Operation
Smart search
Stop
/
Pause play/ Play
Process bar
/
Scaling
up/down the
time line
Video type / picture

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
