User Manual of DS-7200/7300/8100 Series DVR
134
Time periods shall not be repeated or overlapped.
5. Select the Linkage Action tab to set alarm response actions of the alarm input (please refer to Chapter
8.6).

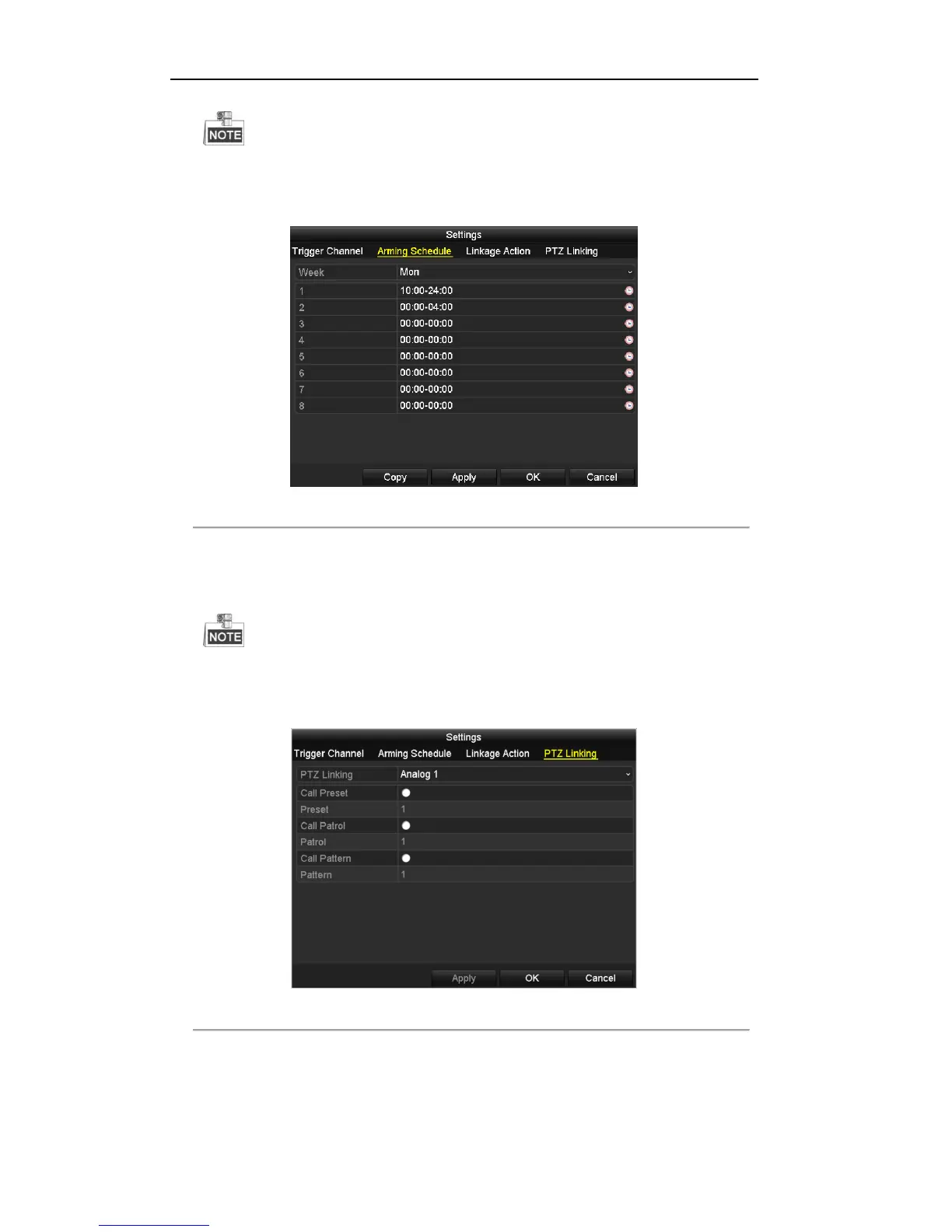

Figure 8. 9 Set Arming Schedule of Alarm Input
6. If necessary, select PTZ Linking tab and set PTZ linkage of the alarm input.
Set PTZ linking parameters and click Apply to save the settings. Click OK to complete the settings of
the alarm input.
Please check whether the PTZ or speed dome supports PTZ linkage.
One alarm input can trigger presets, patrol or pattern of more than one channel. But presets, patrols and
patterns are exclusive.
Figure 8. 10 Set PTZ Linking of Alarm Input
7. If you want to set the alarm response actions of another alarm input, repeat the above steps or just copy
the above settings to it by clicking Copy in Alarm Input Settings interface.

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
