HIKVISION DS-7200 User Manual

User Manual of DS-7200/7300/8100 Series DVR
66

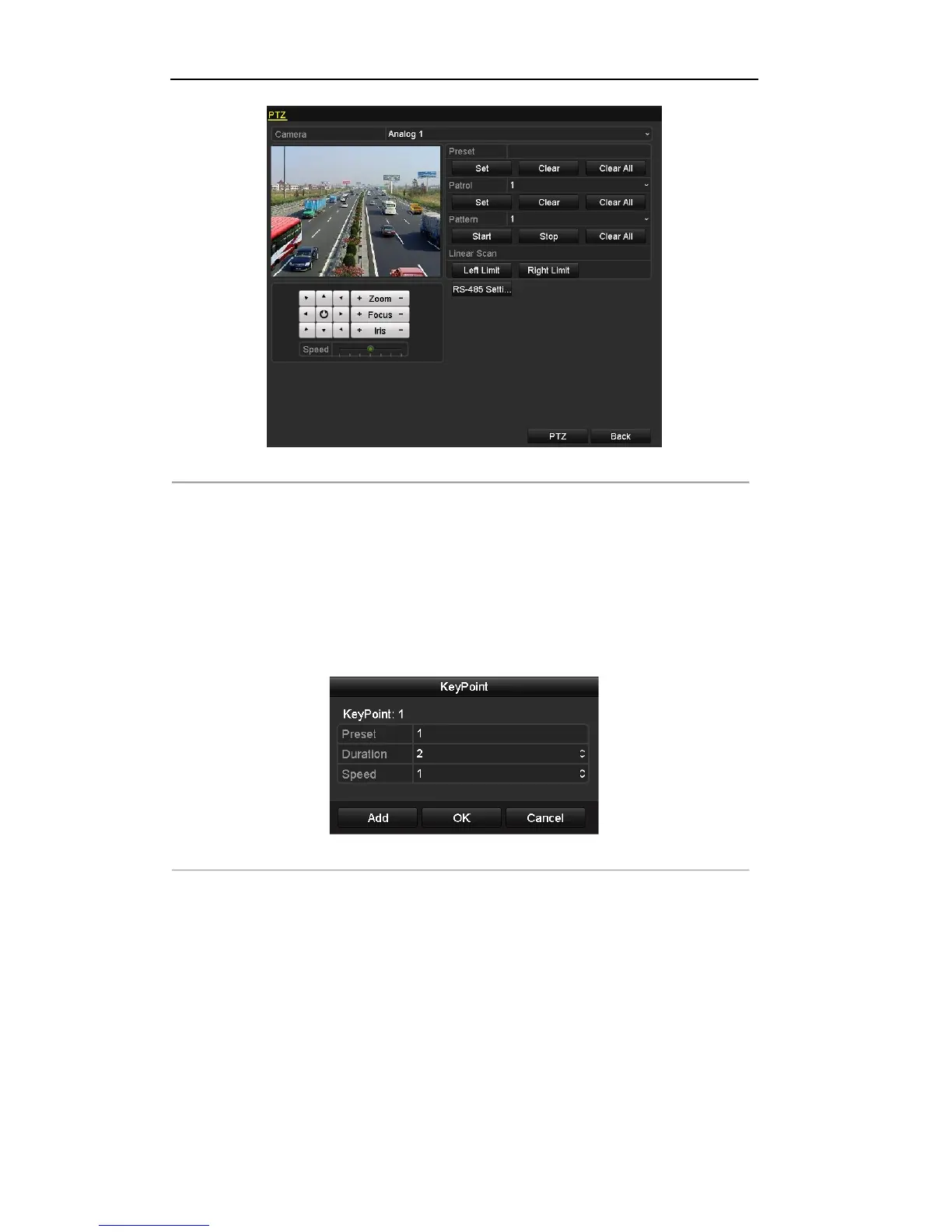

Figure 4. 19 PTZ Settings-Customize Patrol
2. Select the camera for PTZ setting from the drop-down list.
3. Select patrol number from the drop-down list.
4. Click the button Set under the Patrol item to open KeyPoint settings interface.
5. Configure key point parameters, such as the preset No., duration of staying for one key point and speed
of patrol. The key point is corresponding to the preset. The Preset determines the order at which the
PTZ will follow while cycling through the patrol. The Duration refers to the time span to stay at the
corresponding key point. The Speed defines the speed at which the PTZ will move from one key point
to the next.
Figure 4. 20 Key point Configuration
6. Click Add to save the current key point, and then repeat the above steps to set the next one.
7. Click OK to save the patrol settings
8. You can click the Clear button under the Patrol item to clear the selected patrol or click the Clear All
button to clear all the patrol.
Calling Patrols
Purpose:
The PTZ camera will move according to the predefined patrol path when you call a patrol.
Steps:

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
