User Manual of DS-7200/7300/8100 Series DVR
87

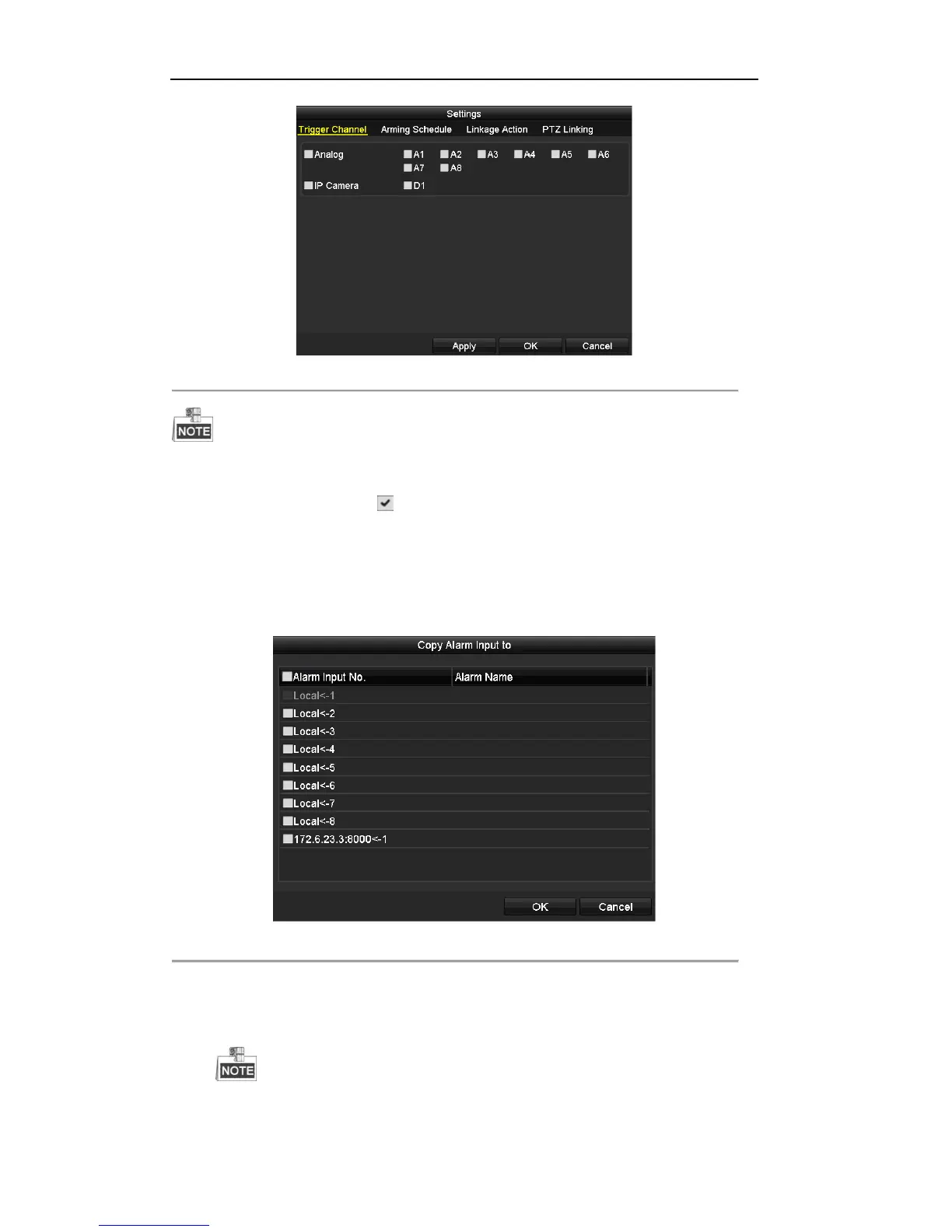

Figure 5. 23 Alarm Handling
The IP Camera is supported by HDVR series only.
5) Choose the alarm triggered recording channel.
6) Check the checkbox to select channel.
7) Click Apply to save settings.
8) Click OK to back to the upper level menu.
9) Click Apply in the Alarm Input interface to save the settings.
Repeat the above steps to configure other alarm input parameters.
If the setting can also be applied to other alarm inputs, click Copy and choose the alarm input number.
Figure 5. 24 Copy Alarm Input
3. Enter Record Schedule settings interface (Menu> Record > Schedule > Record Schedule). For
detailed information about record schedule settings, refer to step 2 in Chapter 5.2 Configuring Record
Schedule.
You need to select the Type as Alarm in record schedule settings.

HIKVISION DS-7200 Specifications

General

Hard Disk	1 SATA interface
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel, RCA
HDD Capacity	Up to 6TB
Network Protocols	TCP/IP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP
Network Interface	1 RJ45 10M/100M adaptive Ethernet interface
USB Interface	2 USB 2.0
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Video Compression	H.264+
Encoding Resolution	1080p/720p/4CIF/CIF
