HIKVISION DS-7732NI-I4 User Manual

Network Video Recorder User Manual
51

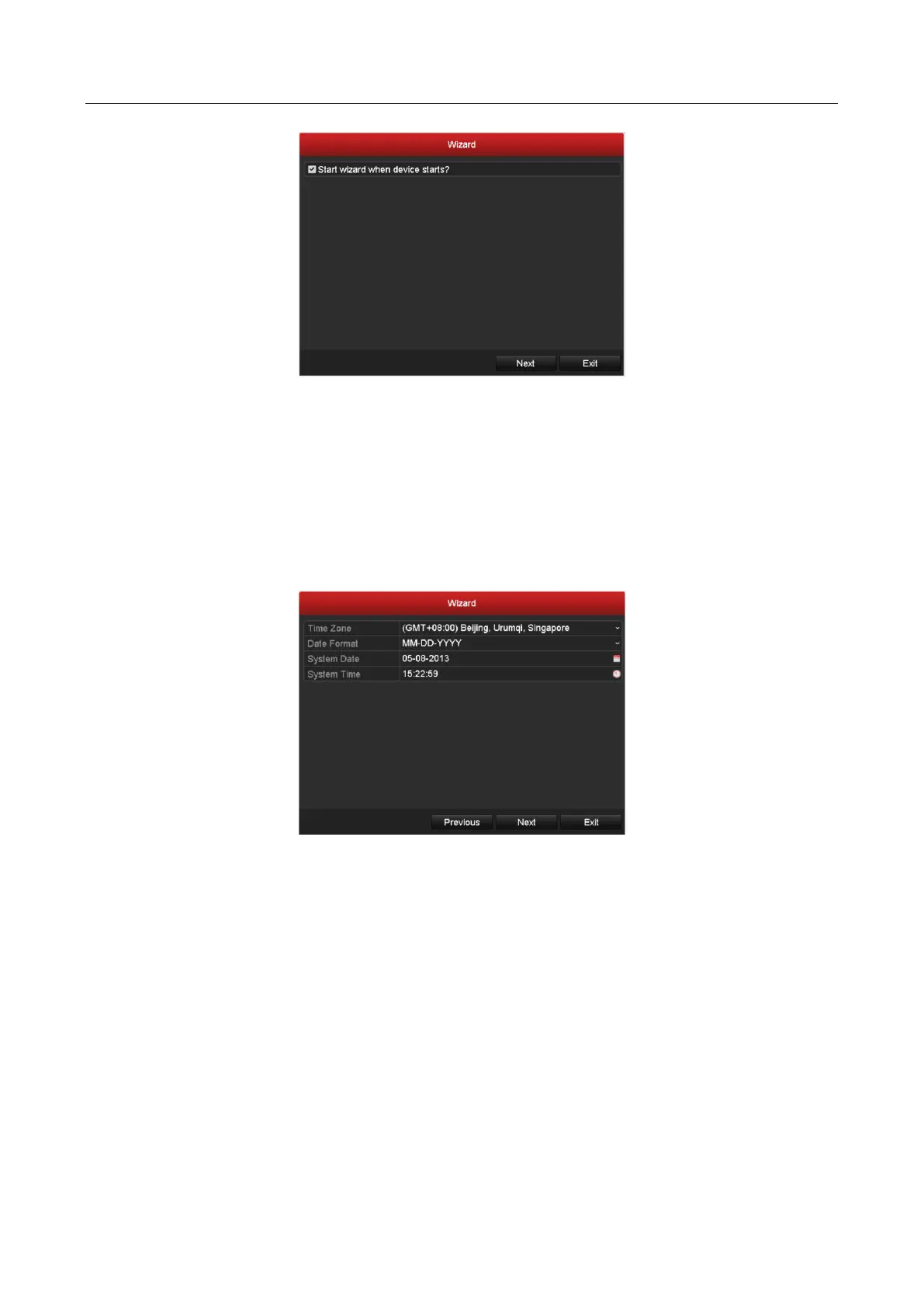

Figure 2-15 Start Wizard Interface
Operating the Setup Wizard:
Step 1 The Setup Wizard can walk you through some important settings of the NVR. If you don’t
want to use the Setup Wizard at that moment, click the Cancel button. You can also choose
to use the Setup Wizard next time by leaving the “Start wizard when the device starts?”
checkbox checked.
Step 2 Click Next button to enter the date and time settings window, as shown in Figure 2-16.
Figure 2-16 Date and Time Settings
Step 3 After the time settings, click Next button which takes you back to the Network Setup Wizard
window, as shown in the following figure.

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
