HIKVISION DS-7732NI-I4 User Manual

Network Video Recorder User Manual
60
 OPTION 3:
Step 1 On the IP Camera Management interface, click the Custom Adding button to pop up the Add
IP Camera (Custom) interface.

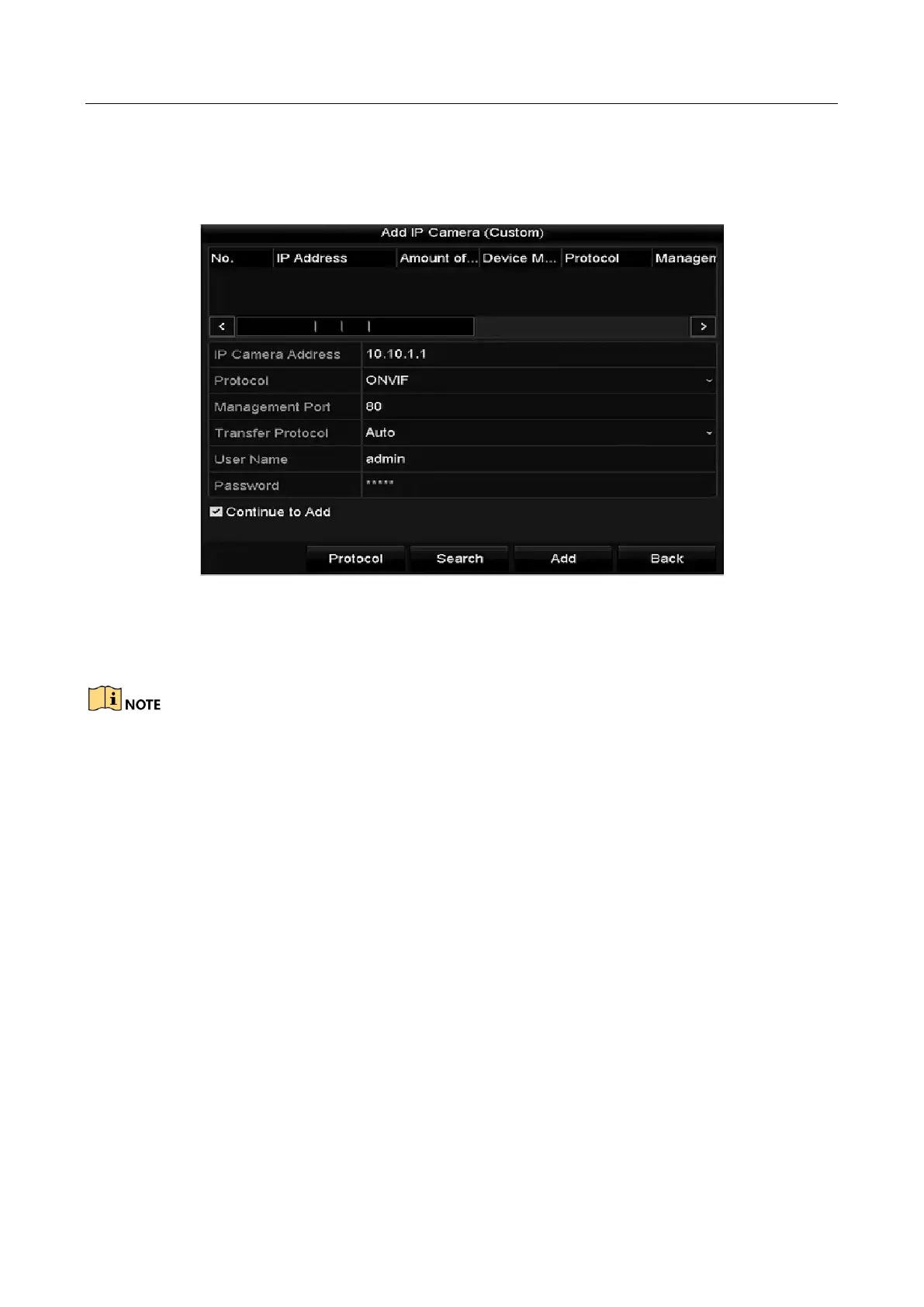

Figure 2-32 Custom Adding IP Camera Interface
Step 2 You can edit the IP address, protocol, management port, and other information of the IP
camera to be added.
If the IP camera to add has not been actiavated, you can activate it from the IP camera list on the
camera management interface.
Step 3 (Optional) Check the checkbox of Continue to Add to add other IP cameras.
Step 4 Click Add to add the camera. The successfully added cameras are listed in the interface.
Refer to the following table for the description of the icons

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
