DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
18

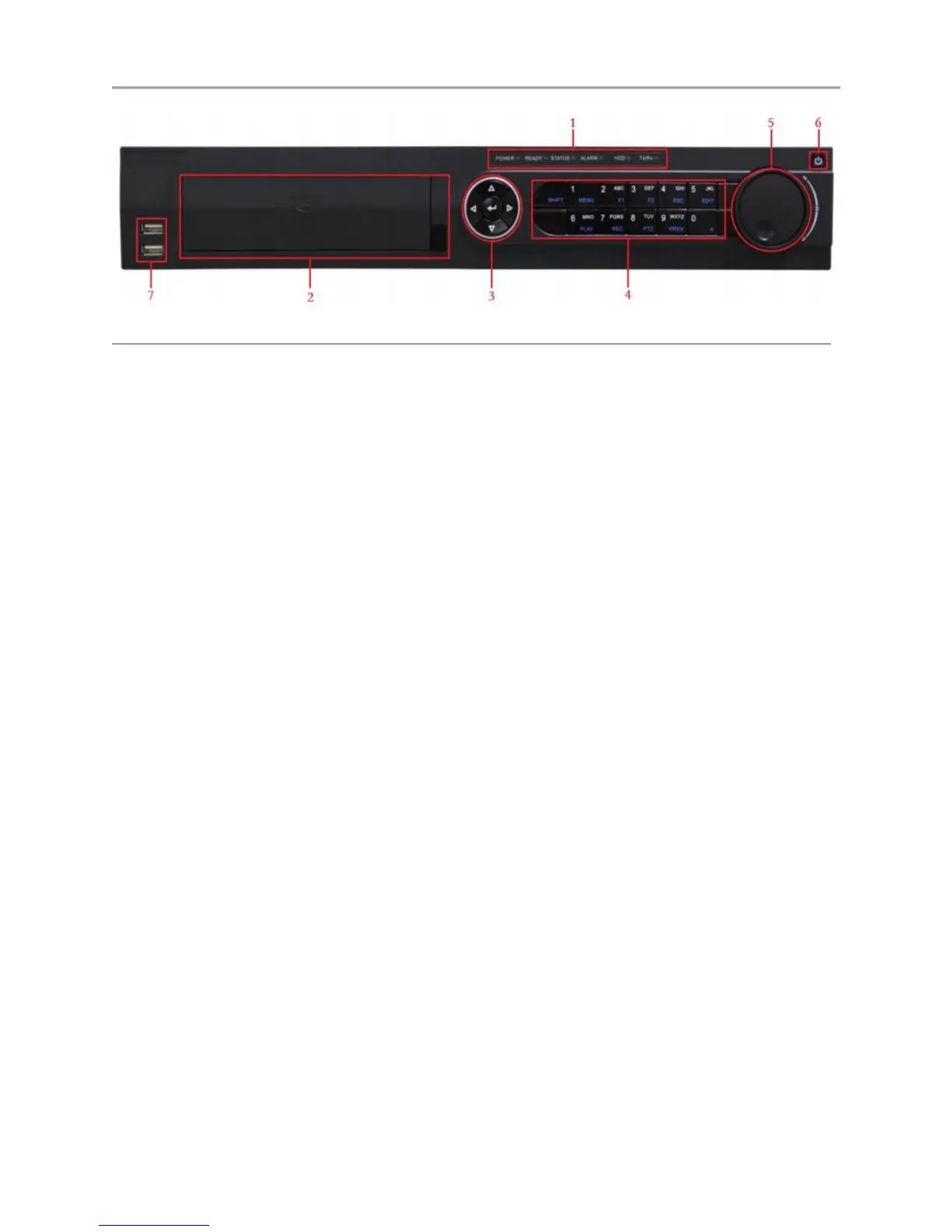

Figure 8 7700 NVR Front Panel Controls
The controls on the front panel include:
1. Status Indicators:
• Alarm: Alarm indicator turns red when a sensor alarm is detected.
• Ready: Ready indicator turns blue when DVR is functioning properly.
• Status: Status indicator turns blue when DVR is controlled by an IR remote. Indicator turns
red when controlled by a keyboard and purple when IR remote and keyboard is used at the
same time.
• HDD: HDD indicator blinks red when data is being read from or written to HDD.
• Modem: Reserved
• TX/RX: TX/RX indictor blinks blue when network connection is functioning properly.
2. DVD-ROM: Slot for DVR-ROM.
3. Direction/Enter Buttons:
• Direction Buttons: The Direction buttons are used to navigate between different fields and
items in menus. In playback mode, the Up and Down button is used to fast-forward and
rewind recorded video. The left and Right button will select the next and previous day of or
pause the video. In Single Play mode, pressing the Enter button will advance the video by a
single frame.
• Enter Button: The Enter button is used to confirm selection in any of the menu modes. It can
be used to tick checkbox fields. In Playback mode, it can be used to play or pause the video.
In Single Play mode, pressing the Enter button will advance the video by a single frame.
4. Control Buttons:
• 1/MENU: Enter numerical “1”; Access the main menu interface.
• 2ABC/F1: Enter numeral “2”; Enter letters “ABC”; The F1 button can be used to select all
items on the list; In PTZ Control mode, the F1 button can be used to zoom out (zoom-) the
PTZ camera; In live view or playback mode, the F1 button can be used to switch between
main and spot video output.
• 3DEF/F2: Enter numeral “3”; Enter letters “DEF”; In PTZ Control mode, the F1 button can be
used to zoom in (zoom+) the PTZ camera; The F2 button can be used to cycle through tab
pages.
• 4GHI/ESC: Enter numeral “4”; Enter letters “GHI”; Exit and back to the previous menu.
• 5JKL/EDIT: Enter numeral “5”; Enter letters “JKL”; Delete characters before cursor; Select
the checkbox and ON/OFF switch; Start/stop record clipping in playback.
• SHIFT: Switch of compound keys between the numeric/letter input and functional control.
