DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
19
• 6MNO/PLAY: Enter numeral “6”; Enter letters “MNO”; In Playback mode, it is used for direct
access to playback interface.
• 7PQRS/REC: Enter numeral “7”; Enter letters “PQRS”; Manual record, for direct access to
manual record interface; manually enable/disable record.
• 8TUV/PTZ: Enter numeral “8”; Enter letters “TUV”; Access PTZ control interface.
• 9WXYZ/PREV: Enter numeral “9”; Enter letters “WXYZ”; Multi-camera display in live view;
In Playback mode or MenuPlaybackTag playback interface, this button can be used to
delete the selected tag.
• 0/A: Enter numeral “0”; Switch between input methods (upper and lowercase alphabet,
symbols and numeric input). In Playback mode, this button can be used to add the default tag.
5. Jog Shuttle Control: The Jog Shuttle control can be used to move the active selection in a menu. In
the playback mode, the outer ring is used to speed up/slow down the video. The inner ring can be
used to jump 30 seconds forward/backward in a video. In Preview mode, it can be used to cycle
through different channels.
6. Power Button: Powers DVR on/off.
7. USB Ports: Connects USB mouse or USE flash memory devices.

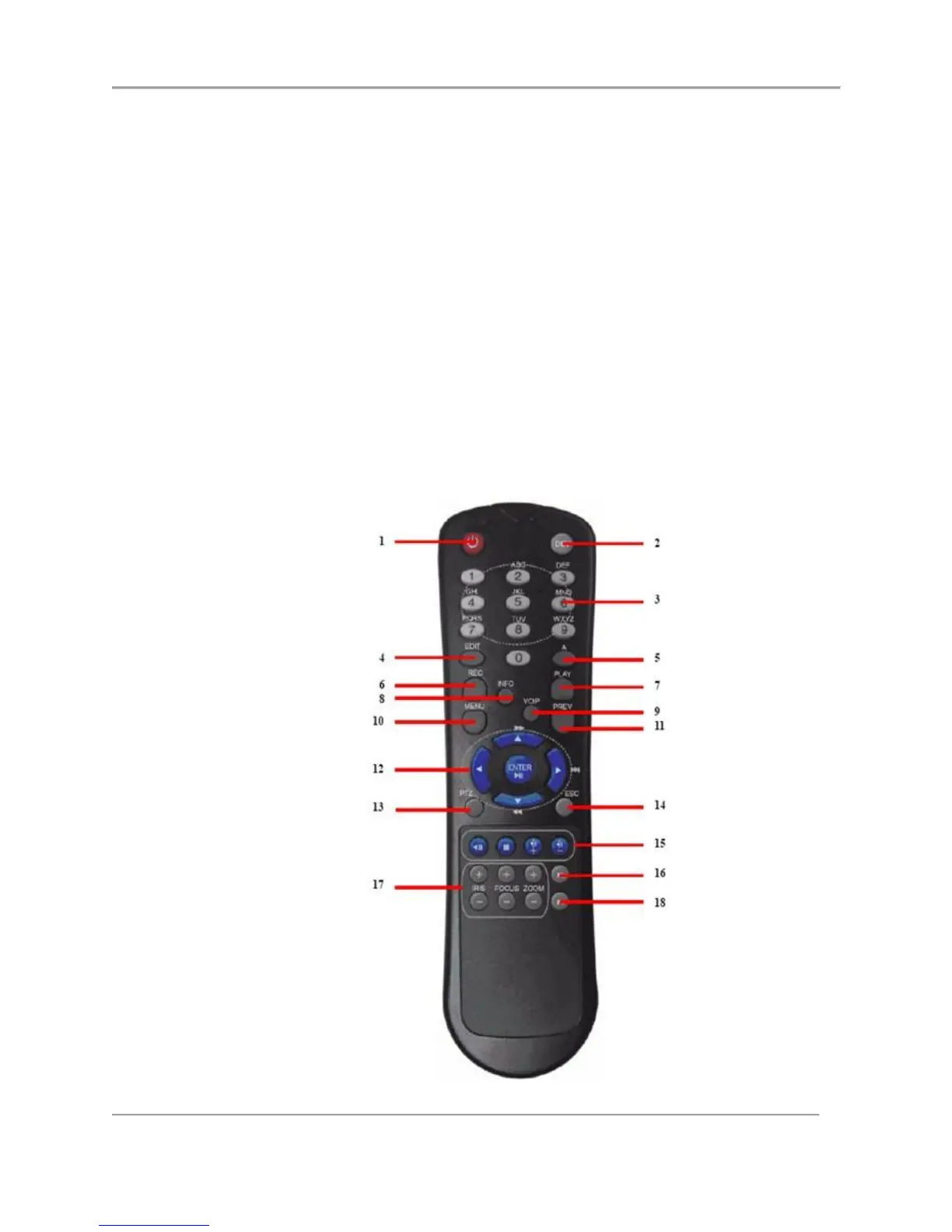

Figure 9 IR Remote Control
