DS-7700NI-SP/9000/9600 Series HDVR/NVR User’s Manual
79

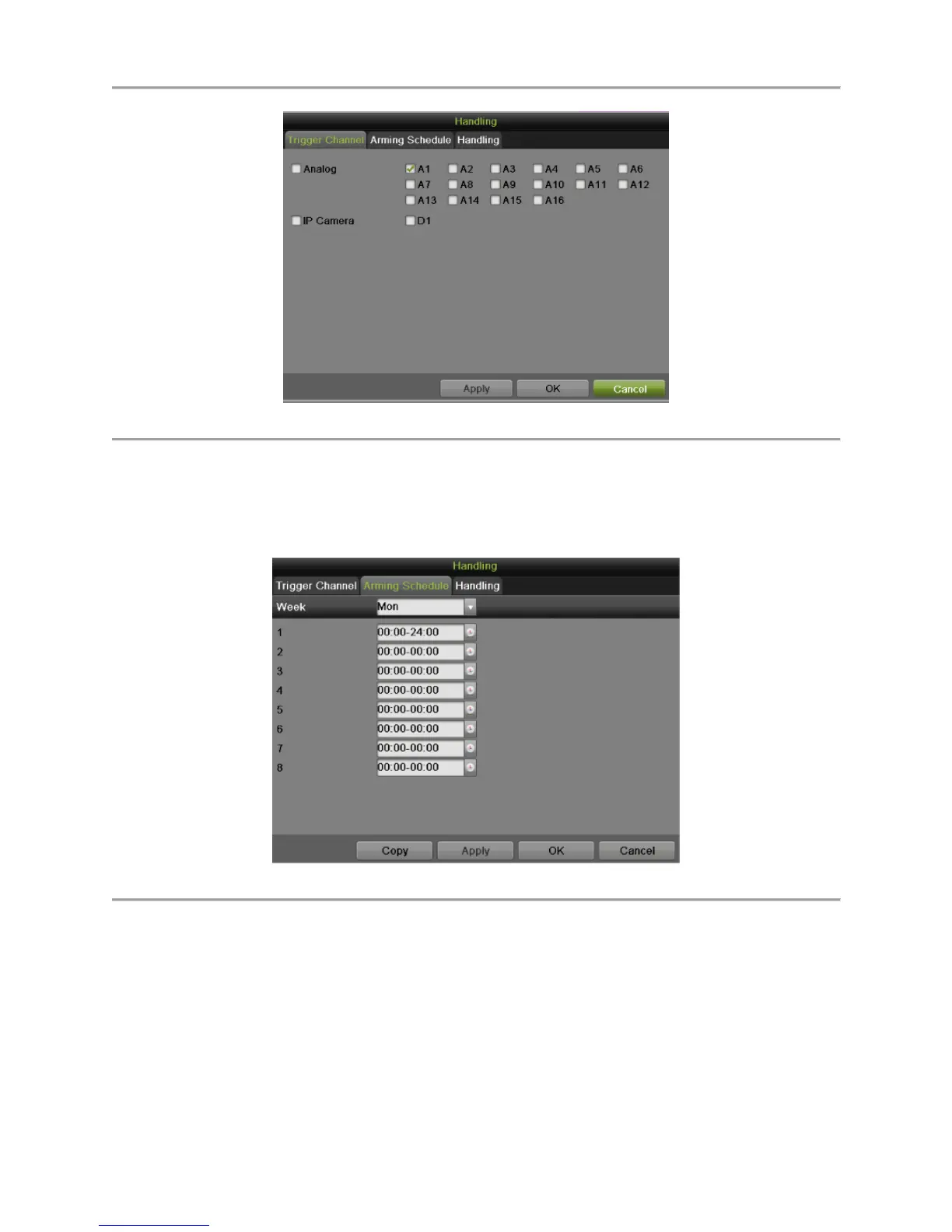

Figure 78 Trigger Channel Settings Menu
1) Select the Trigger Channel tab and check the checkbox of channels which you want the
motion detection event to trigger recording. Click Apply to save the setting.
2) Select the Arming Schedule tab, as shown in Figure 79. Choose one day in a week and set an
arming schedule. If the schedule can also be applied to other days, click Copy. Click the
Apply button to save the settings.
Figure 79 Arming Schedule Settings Menu
3) Select the Handing tab, as shown in Figure 80.
To Next Page
