Group No. Funcon Color Name Descripon
D2 White/Yellow COM Common
D3 White/Red NO Lock Wiring
(NO)
D4 Yellow/Green SENSOR Door Contact
D5 Black GND Ground
D6 Yellow/Gray BUTTON Exit Door
Wiring
D7 Yellow/Black GND Ground
4.2 Wire Normal Device
You can connect the terminal with normal peripherals.

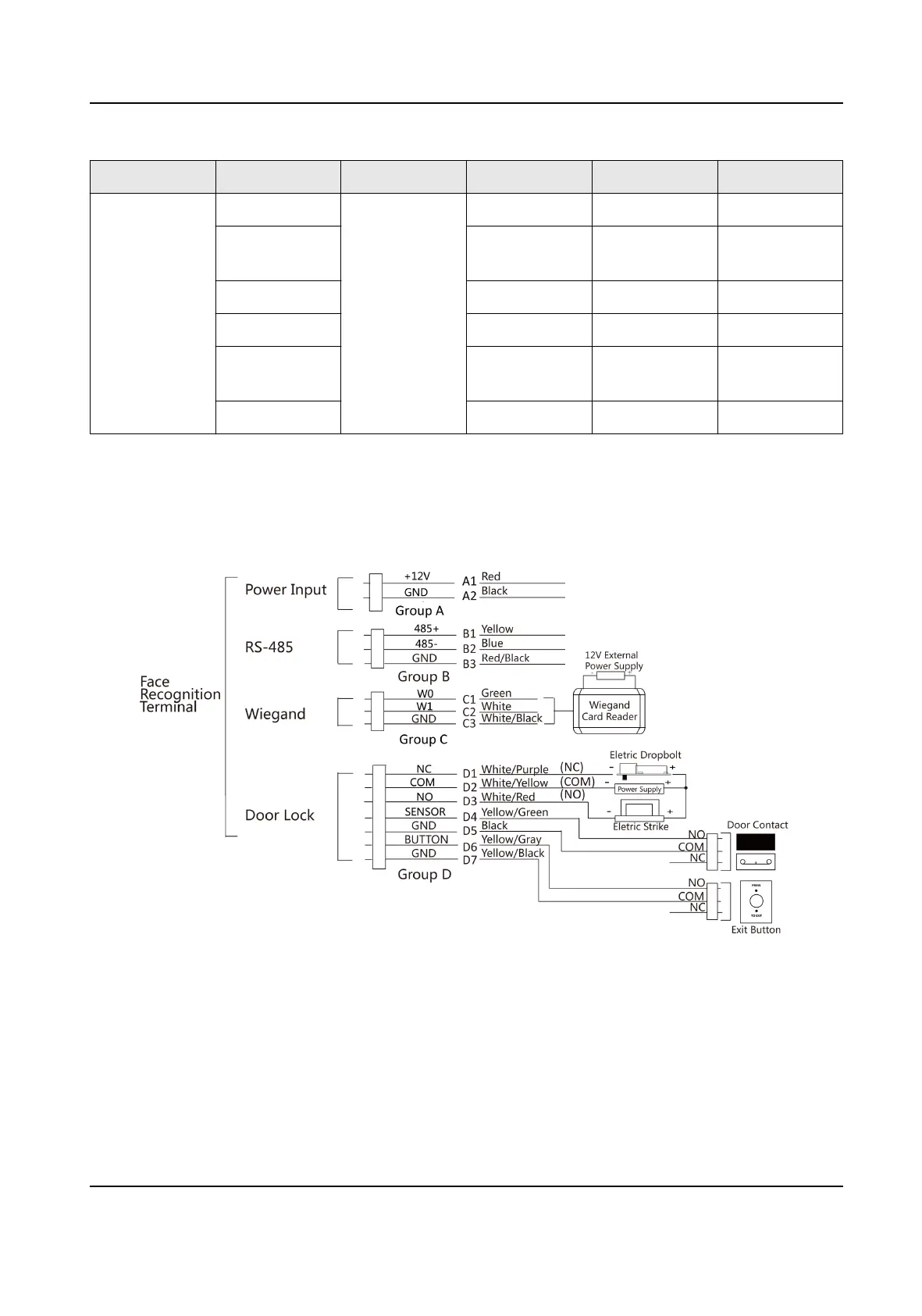

Figure 4-1 Device Wiring
DS-K1T341C Series Face Recognion Terminal User Manual
17
