Access Control Terminal·User Manual
30

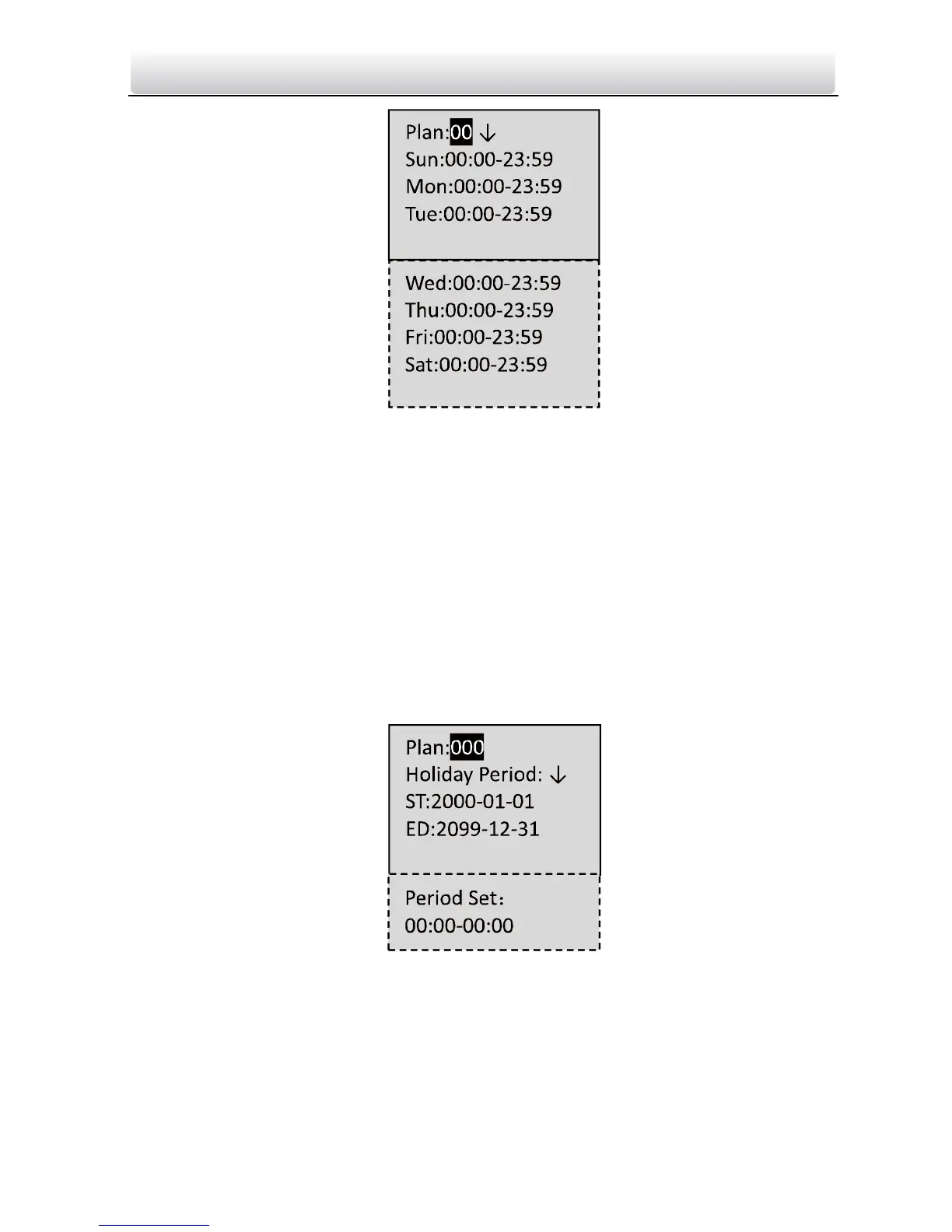

Figure 6-29 Weekly Schedule Settings Interface
3. Set the plan No., with entering the plan No. by the numeric keys.
Max. 32 plans can be configured, and the plan No. range is from 1 to 32.
4. Set the detailed time periods from Sunday to Saturday with entering the
start time and end time by the numeric keys.
5. Click the * key to return to the Access Opt interface.
Holiday Schedule Settings
Steps:
1. Move the cursor to Holiday Plan by using direction keys.
2. Click the # key to enter the holiday schedule configuration interface.
Figure 6-30 Holiday Schedule Settings Interface
3. Set the plan No., with entering the plan No. by the numeric keys.
Max. 128 plans can be configured, and the plan No. range is from 1 to 128.
4. Set the detailed holiday information.
Date: Enter the start date and end date by the numeric keys.
