UM IPC-4300H 040320NA 136

protocol and verify the data by means of the displayed code.

2.3.30. Audio Player

Click to enter. The audio player only supports MP3 audio files.

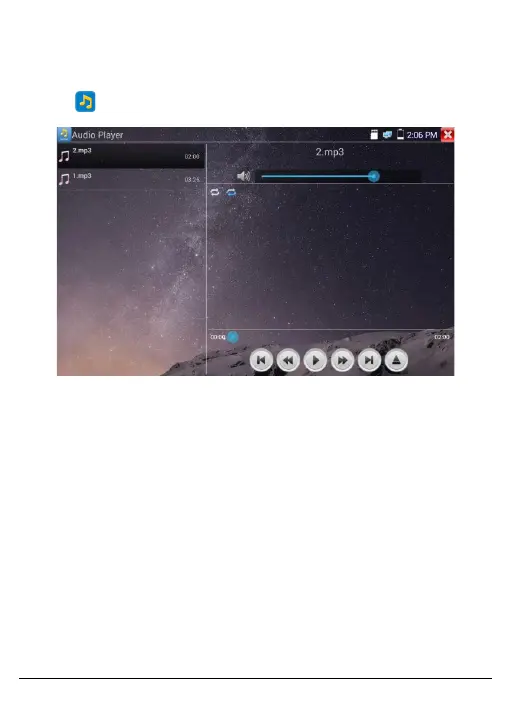

Figure 135, Audio Player Screen
