UM IPC-4300H 040320NA 37

2.3.5. Rapid Video

Press to select this function. One key can be used to detect all

network cameras and automatically play their images.

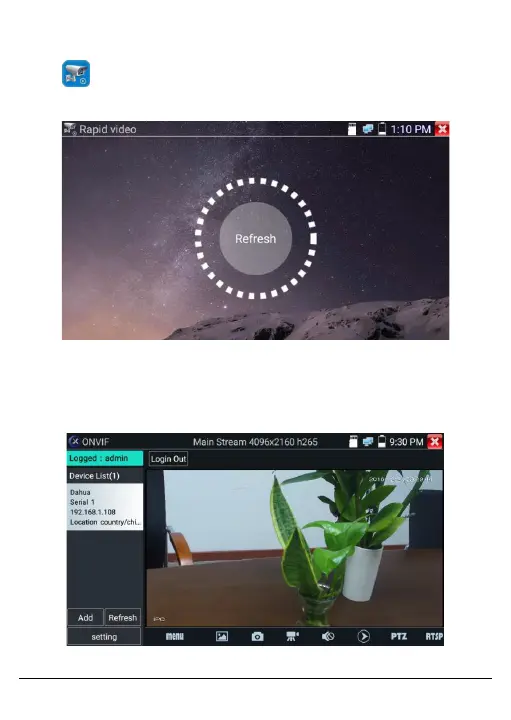

Figure 18, Rapid Video Screen

For more details, refer to ONVIF user instructions.

Figure 19, Camera Image Display
