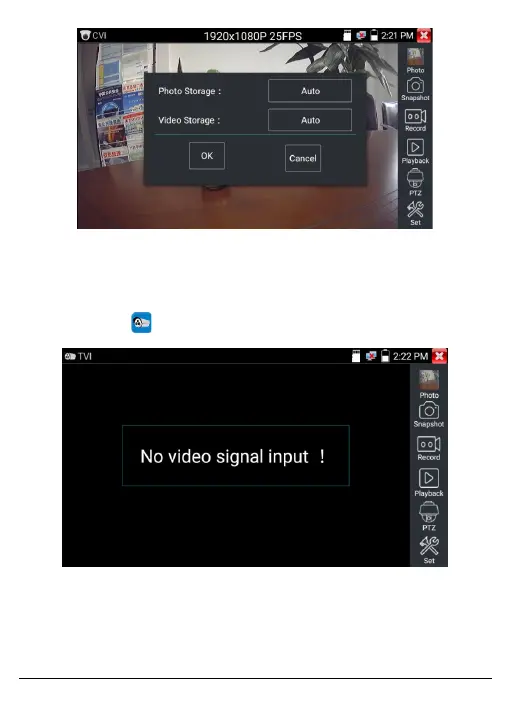

Figure 82, Photo and Video Storage Settings

2.3.14. TVI Camera Testing (Optional)

For HD TVI camera testing, TVI dome camera testing and PTZ

control, click to proceed.

Figure 83, TVI Testing Screen

For HD TVI signal input, the Tester will display the image resolution

on the top bar. Double-tap on the screen to display the image in

full-screen mode.

Main Page
