C. The Tester sends out a video signal image to test the image

received by the monitor.

2.3.12. SDI Camera Test (Optional)

Click to perform SDI camera testing, dome camera testing or

PTZ control.

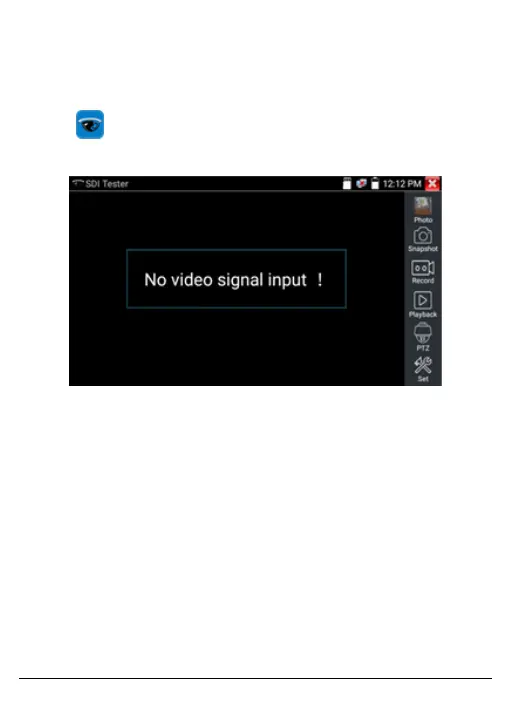

Figure 70, SDI Tester Screen

Double-tap on the screen to display the image in full-screen

mode.

The Tester supports the following resolutions:

1280 x 720p: 25 Hz, 1280 x 720p: 30 Hz, 1280 x 720p: 50 Hz, 1280 x

720p: 60 Hz, 1920 x 1080p: 25 Hz, 1920 x 1080p: 30 Hz, 1920 x

1080l: 50 Hz, 1920 x 1080l: 60 Hz, 2560 x 1440p: 25 and 30 fps,

3840 x 2160p: 20 and 30 fps
