UM IPC-4300H 040320NA 148

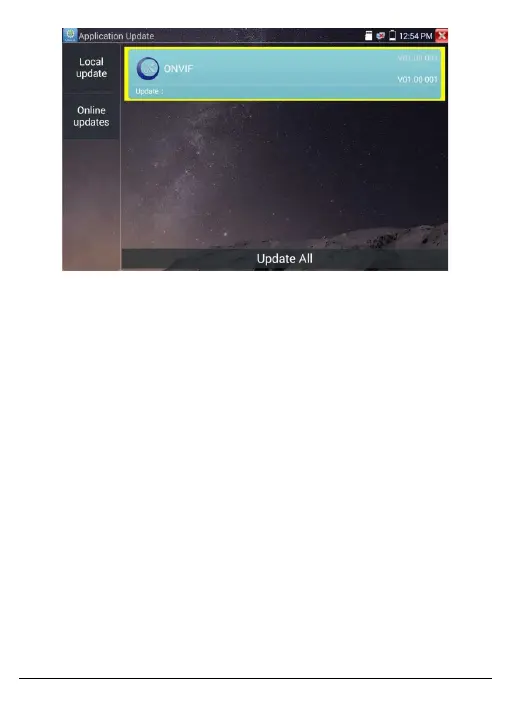

Figure 151, Application Update Screen

Programs that need to be updated will be listed on the screen.

Click the available application to update to the latest version.

2.3.36. Office

The Quick Office application (supports Excel, Word, and Power

Point formats) allows for convenient document editing

functionality.
