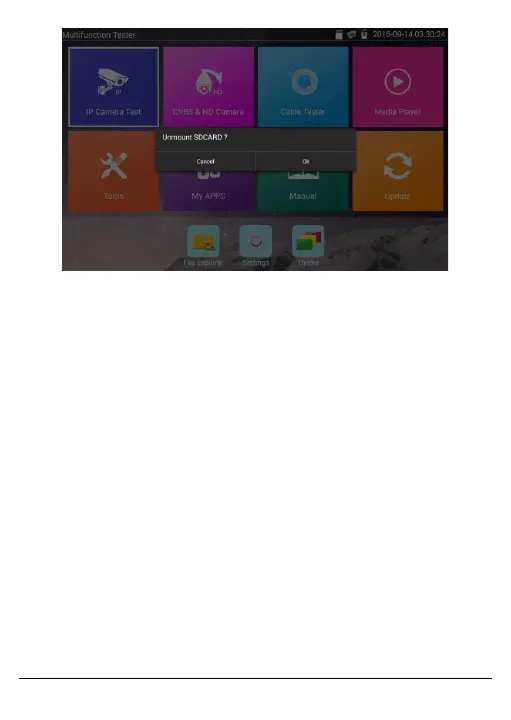

Figure 10, SD Card Installation and Removal

2.3.1. Drop-Down Menu

Press and slide the top right corner down twice to open the shortcut

menu.

The shortcut menu includes the following functions: PoE Power

Output, IP Settings, Wi-Fi, HDMI In, CVBS, Video Out, Brightness,

Settings and more.

Main Page
