HIKVISION IPC-4300H

To Next Page

To Previous Page

UM IPC-4300H 040320NA 30

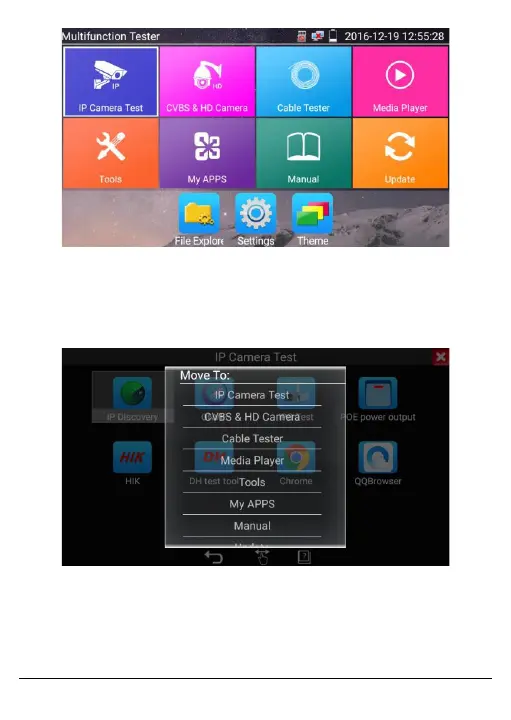

Figure 8, Lite Mode – Changing App Location

• In Lite Mode, click the finger icon in the lower right-hand corner to

release the lock icon, to move icons around, or to change the icon

sequence function.

Figure 9, Moving Icons

• Click SD Card to install or remove the SD card.

Main Page
