UM IPC-4300H 040320NA 161

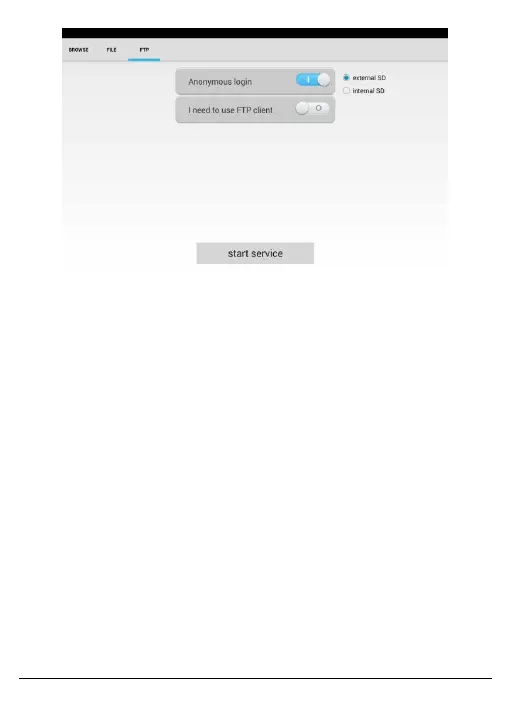

Figure 168, FTP Server Access Screen

2.3.42. Theme

Click the Theme icon to enter.

• Desktop Style: Select between Lite Mode and Normal Mode.

• Theme: Pressing a square of any color for several seconds will

automatically move the square to the rectangular area. Pressing a

selected color for several seconds will automatically delete it.

Theme colors are in fixed or random order. Click Set to save.
