2.3.40. System Settings

Click to open.

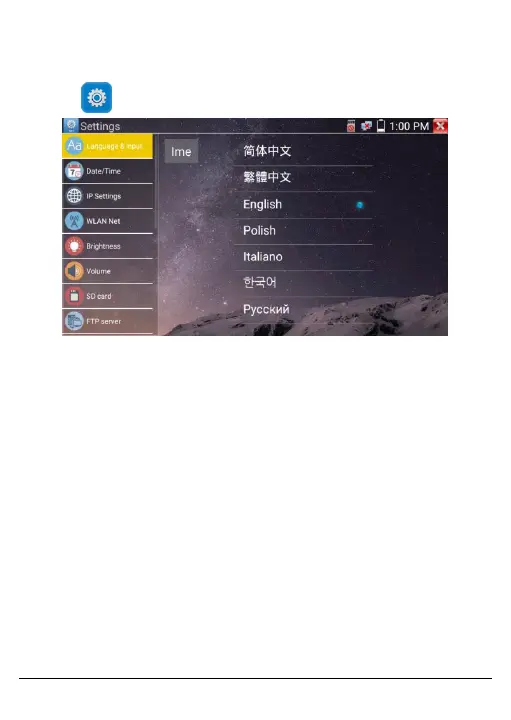

Figure 158, Settings Screen

• Language: Choose language. Options include English, Chinese,

Korean, Russian, Italian, Polish, Spanish, French or Japanese.

• Typewriting: Select typewriting, or install another form of

typewriting.

• Date/Time: Set the Date/time of the IP Tester.

• IP Settings: Manually set the IP Address, Subnet Mask, Default

Gateway and DNS Address, or select Dynamic Allocation to use

DHCP.
