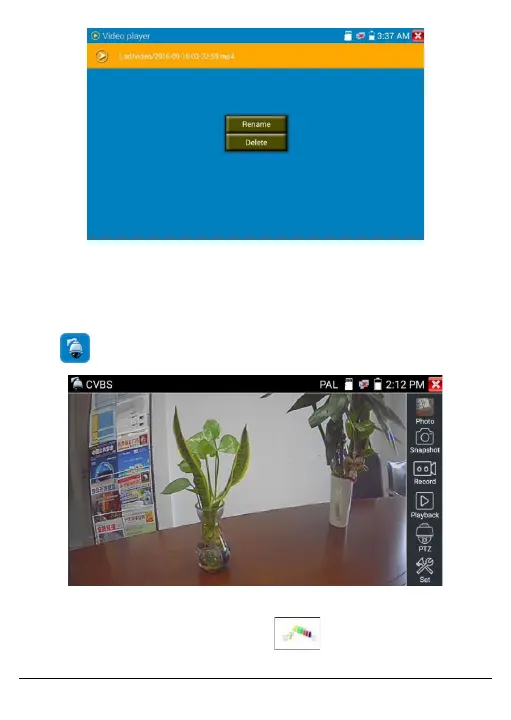

Figure 58, Rename or Delete Recorded Videos

Video files also can be played in the main Video Player menu.

2.3.10. Video Monitor Test

Click to perform analog camera testing and PTZ control.

Figure 59, Video Monitor Test Screen

To show the input video image, click in the top menu bar to

enter the video level meter. Available options include Peak Level,

Main Page
