UM IPC-4300H 040320NA 65

• Recorded Video Playback

Click the Playback icon to view your recorded videos. Tap on the

video file image you want to watch.

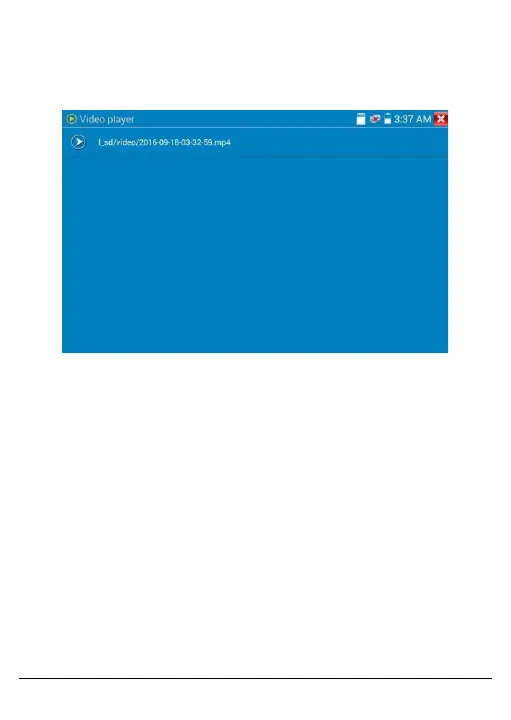

Figure 57, Recorded Video Playback Screen

To rename or delete a video, click and hold the file until the

following screen appears.
