UM IPC-4300H 040320NA 67
Sync Level and Color Burst measurement).
Select relative function on the right side of the toolbar for the
following functions: Photos, Snapshot, Record, Playback, PTZ and
Set.
Click or press to quit.
Click the screen twice quickly to zoom in on the touch screen.
• PTZ Controller Parameter Settings
Select and click the PTZ icon to enter PTZ settings.

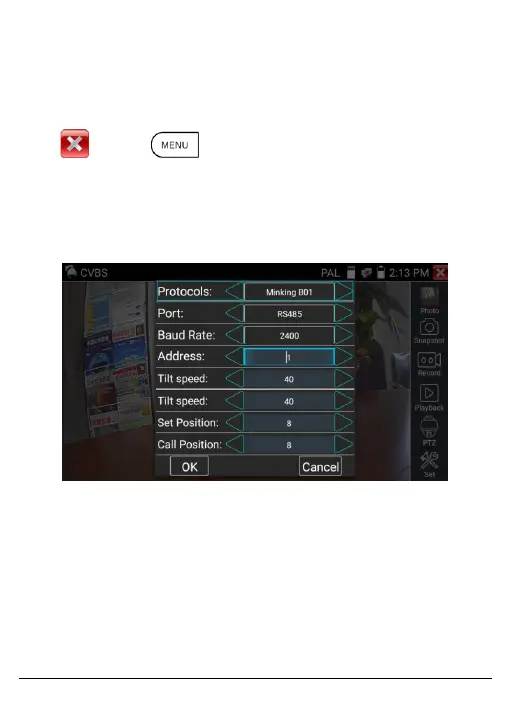

Figure 58, PTZ Controller Parameter Settings
• Protocol: Use the up and down arrow keys to move the yellow
cursor to Protocol. Set the corresponding protocol (over 30 PTZ
protocols are supported, such as Pelco-D, Samsung, Yaan, LiLin,
CSR600, Panasonic, Sony-EVI, and more).
• Port: Click and move to set Port settings. Select the
communication port for the PTZ camera (RS-485).
