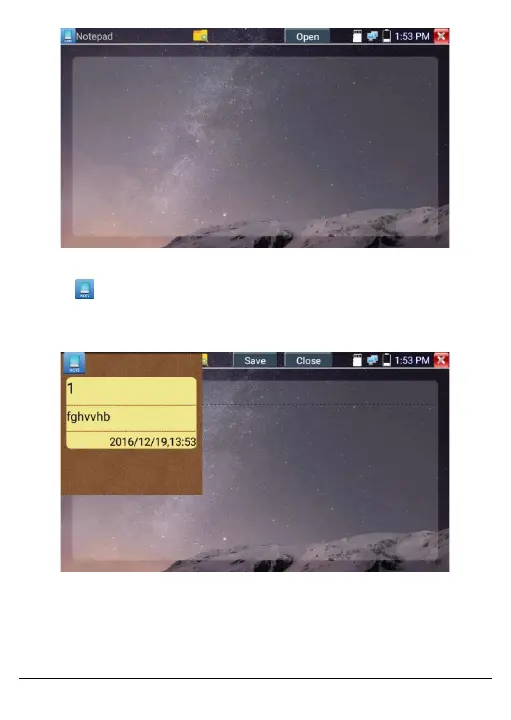

Figure 156, Notepad Screen

Click to view the Notepad. Click each Record Bar to show the

details. To delete an entry, press the Record Bar for several

seconds. A deletion prompt will appear.

Figure 157, Notepad Screen – Example of Use

Main Page
