UM IPC-4300H 040320NA 41

The Tester will show the IP camera’s relative information and

settings.

The Tester can automatically detect connected and unactivated

Hikvision cameras.

The following prompt will be displayed: "The camera has not been

activated, activate now?" will be displayed.

Click OK to start activation.

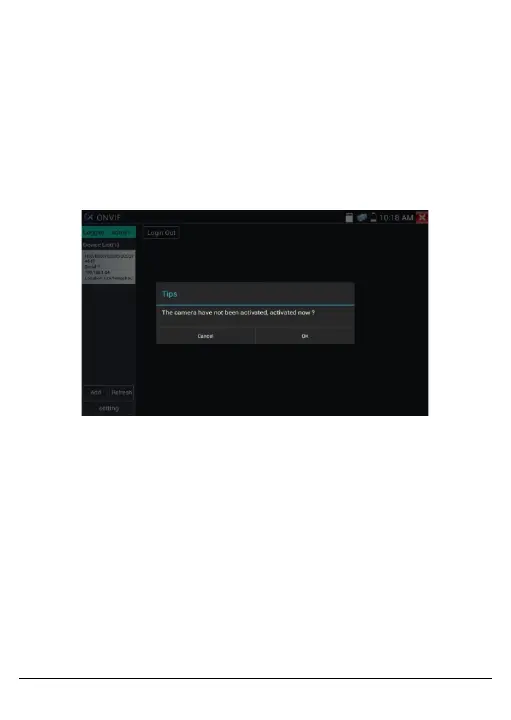

Figure 22, Device Activation Screen

Enter a new password for the camera.
