UM IPC-4300H 040320NA 52
In the Input Name dialogue box, choose a file name (letters or
numbers are acceptable) to save the image to the SD card.
If Auto Storage has been selected, the Tester will store the file
automatically.
• Record: Click the Record icon to start video recording.
A red recording icon will appear on the screen and begin to flash.
A timer will also appear, indicating the time elapsed.
Click the Stop icon to stop recording and to save the video file on
the SD card.

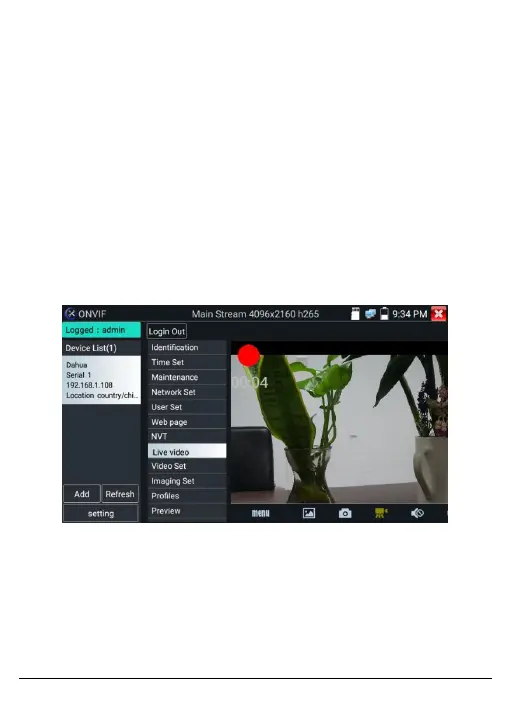

Figure 40, ONVIF Settings Screen – Live Video
• Playback: Click the Playback icon to view the saved videos.
Double-click the video that is to be played. Click anywhere else to
return to the previous menu.
