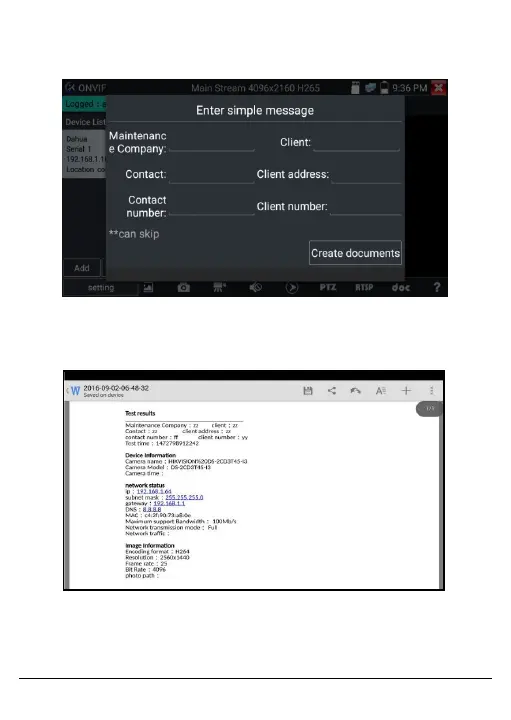

Enter the camera test information interface and click Create

Document to complete the report.

Figure 46, Report Creation

Click the Doc menu again to preview the report.

Figure 47, Report
