The following resolutions are supported:
720 × 480p, 720 × 576p, 1280 × 720p, 1920 × 1080p, 1024 × 768p,
1280 × 1024p, 1280 × 900p, 1440 × 900p

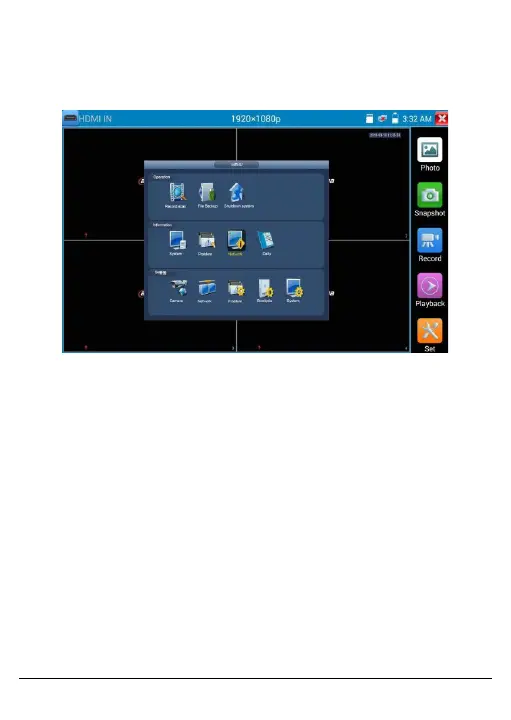

Figure 52, HDMI In Screen
• Snapshot
Click Snapshot to take a picture and save the current video frame
on the SD card as a JPEG file.
If the unit is set to manual mode, an “Input Name” pop-up box will
appear. The snapshot title can be entered here. If the unit is set up
to automatically set file names, this box will not be shown.
