UM IPC-4300H 040320NA 63

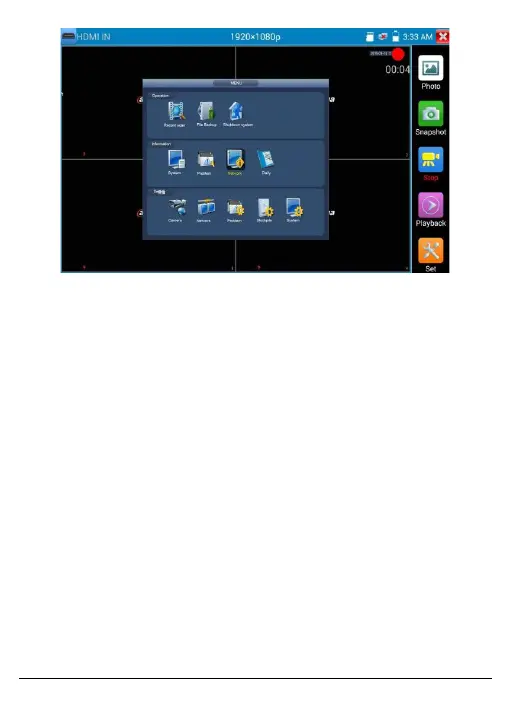

Figure 54, HDMI In Screen

• Photo

Click Photo to select this option. Click the selected thumbnail photo

to display it on the screen.

Double-click the image to view it in full-screen mode.

Double-click the image once again to return.
