UM IPC-4300H 040320NA 70

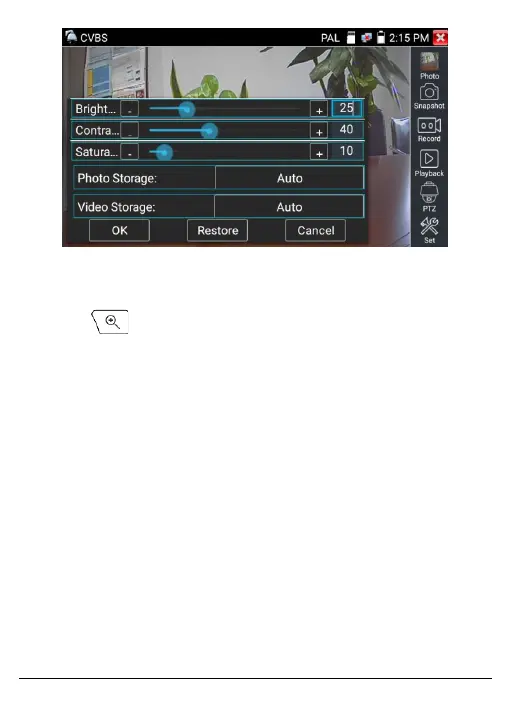

Figure 60, Video and Photo Storage Settings

• 4x Zoom Image Display and Video Output

Press to begin Zoom and press it again to leave it.

Using the touch screen, control PTZ camera movements as follows:

Tap left, right, upward or downward on the video image to move the

PTZ camera in a desired direction.

Stretch two fingers outward or inward on the touch screen to zoom

the image in or out.
