UM IPC-4300H 040320NA 76

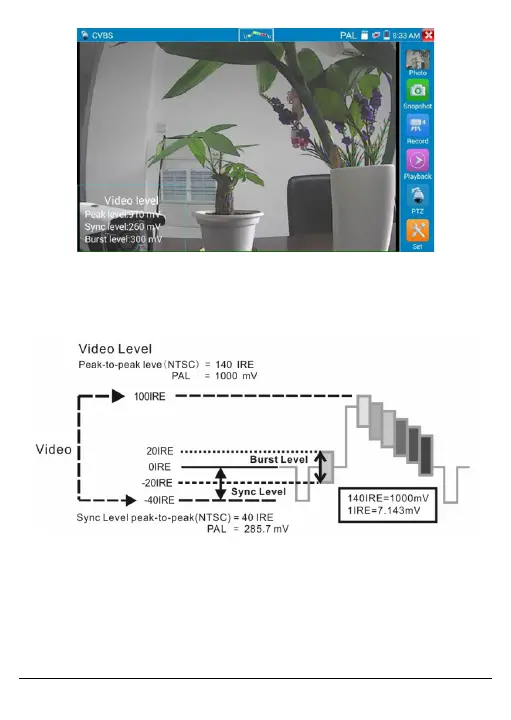

Figure 67, Video Level Meter Screen

While in PAL format, the unit will operate in mV units, and in IRE

while in NTSC format.

Figure 68, Video Level Measurement
