UM IPC-4300H 040320NA 94

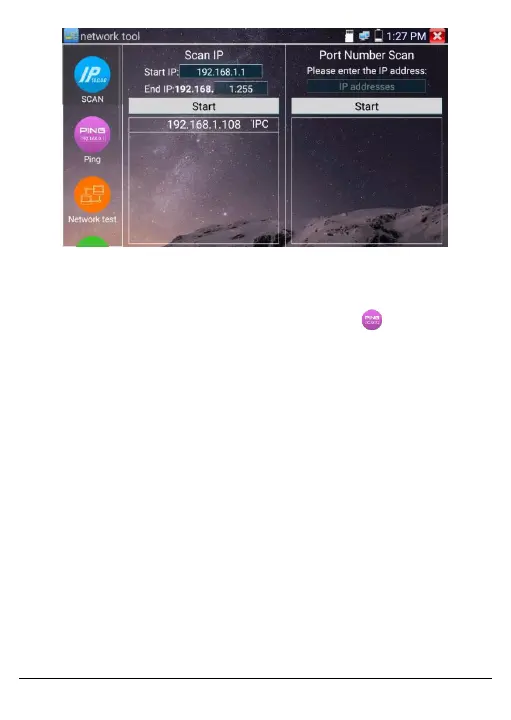

Figure 89, Port Scan Screen

• Ping Testing

Connect a network cable to the LAN port and click to open the

Ping tool. Set the Local (native) IP Address, Remote IP Address (e.g. IP

camera), Packet Count, Packet Size, Packet Time and Timeout value.

Press Start to start pinging. If the IP camera or network device is not

configured properly or not plugged in, the “Destination host

unreachable” message will be displayed, or there will be a 100%

packet loss.

When the Tester successfully connects to the device, there will be a

0% packet loss in the sent and received packets field.
