UM IPC-4300H 040320NA 96

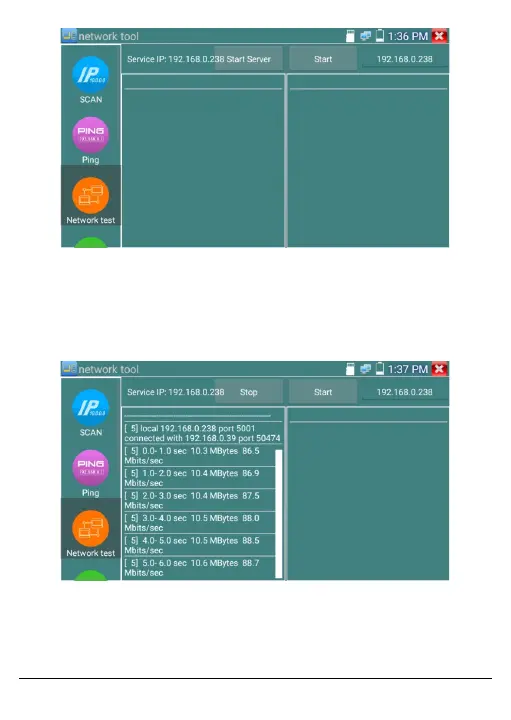

Figure 91, Network Testing Screen

• Start the server:

Click Start Server to use the Tester as a Server. The IP address will

be displayed at the top of the screen.

Figure 92, Start Server
