2.2 Variable Height Adjustable Pedestal/Stand Will Not Move Up or Down
Chapter 2: Troubleshooting Procedures
2.2 Variable Height Adjustable Pedestal/Stand Will Not Move Up
or Down
1. Check the variable height adjustable pedestal stand.
a. Turn on the main power switch (A) (see figure 2-1 on page 2-6).

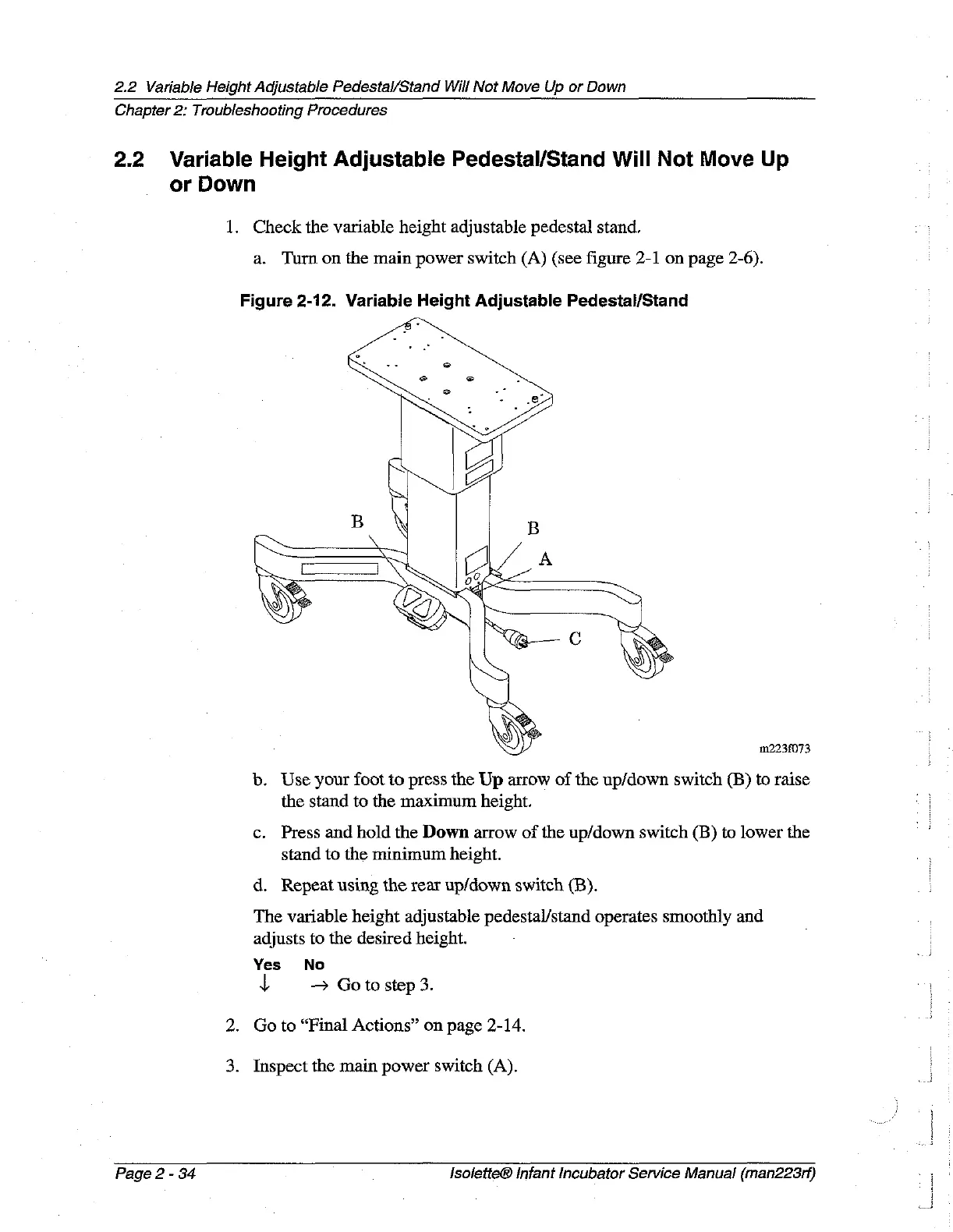

Figure 2-12. Variable Height Adjustable Pedestal/Stand
m223f073
b. Use your foot to press the Up arrow of the up/down switch (B) to raise
the stand to the maximum height.
c. Press and hold the Down arrow of the up/down switch (B) to lower the
stand to the minimum height.
d. Repeat using the rear up/down switch (B).
The variable height adjustable pedestal/stand operates smoothly and
adjusts to the desired height.
Yes No
$} — Go to step 3.
2.
Go to “Final Actions” on page 2-14.
3. Inspect the main power switch (A).
Page 2 - 34 Isolette® Infant Incubator Service Manual (man223rf)
