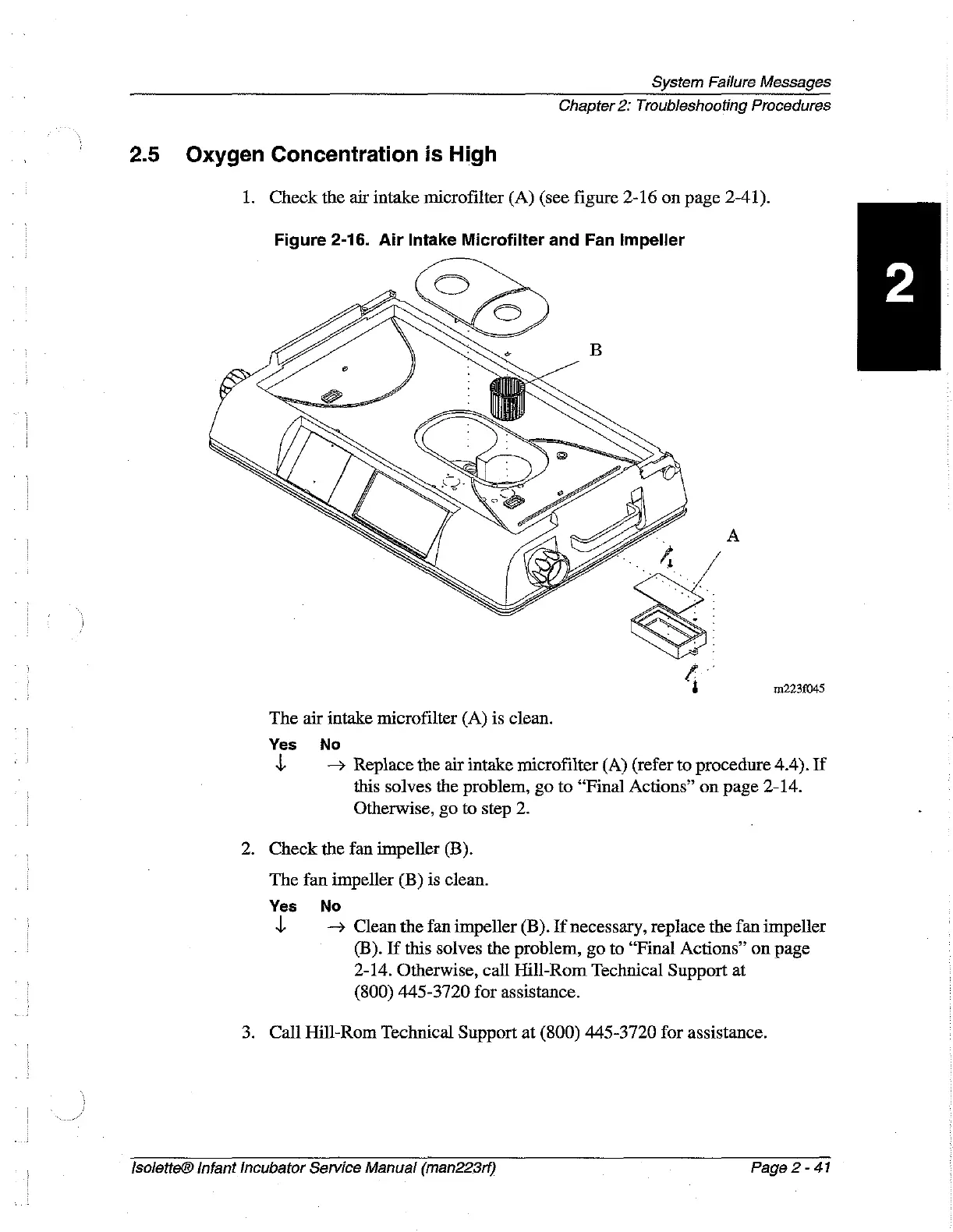

Hill-Rom Isolette C2000 - Oxygen Concentration is High

System Failure Messages
Chapter 2: Troubleshooting Procedures
2.5 Oxygen Concentration is High
1. Check the air intake microfilter (A) (see figure 2-16 on page 2-41).
Figure 2-16. Air Intake Microfilter and Fan Impeller
m223f045
The air intake microfilter (A) is clean.
Yes No
L > Replace the air intake microfilter (A) (refer to procedure 4.4). If
this solves the problem, go to “Final Actions” on page 2-14.
Otherwise, go to step 2.
2. Check the fan impeller (B).
The fan impeller (B) is clean.
Yes No
| — Clean the fan impeller (B). If necessary, replace the fan impeller
(B). If this solves the problem, go to “Final Actions” on page
2-14. Otherwise, call Hill-Rom Technical Support at
(800) 445-3720 for assistance.
3. Call Hill-Rom Technical Support at (800) 445-3720 for assistance.
1 Isolette® Infant Incubator Service Manual (man223rf) Page 2 - 41
