2.4 Oxygen Concentration is Low
Chapter 2: Troubleshooting Procedures
Yes No
y — Properly install the iris entry port (B) sleeve (refer to procedure
4.8). If this solves the problem, go to “Final Actions” on page
2-14. Otherwise, go to step 4.
4. Check the tubing access ports.
The tubing access ports are properly installed.
Yes No
y — Properly install the tubing access ports.
5. Check the filter cover (C) (see figure 2-15 on page 2-39).

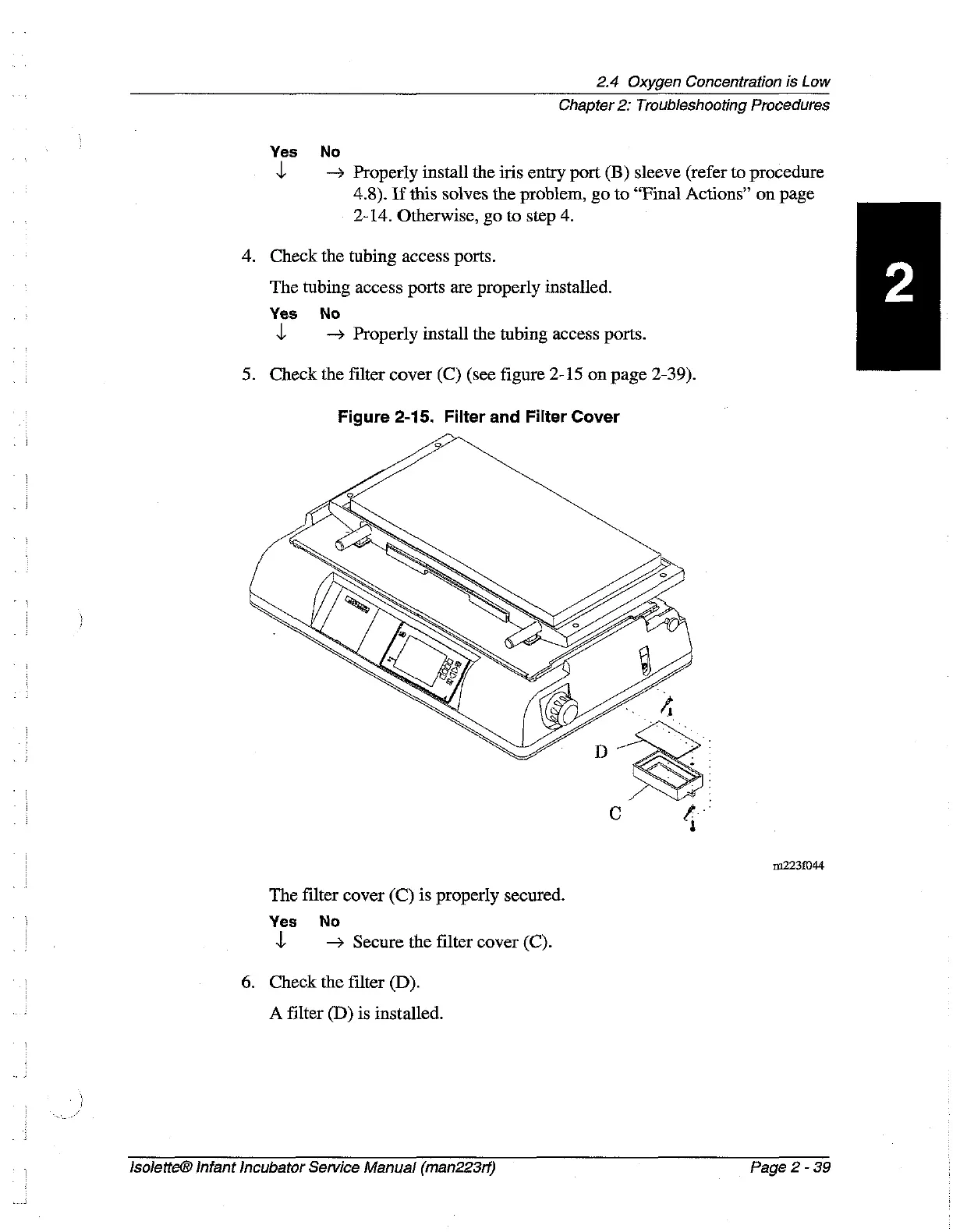

Figure 2-15. Filter and Filter Cover
112238044
The filter cover (C) is properly secured.
Yes No
$ — Secure the filter cover (C).
6. Check the filter (D).
A filter (D) is installed.
Isolette® Infant Incubator Service Manual (man223rf) Page 2 - 39
