F30 03 3 Product Description
HI 800 473 E Rev. 1.00 Page 19 of 46
3.4.2 Communication
The controller communicates with remote I/Os via safeethernet. Up to 128 redundant
safeethernet conections can be configured.
3.4.2.1 Connections for Ethernet Communication
Property Description
Port 4 x RJ-45
Transfer standard 10/100/Base-T, half and full duplex
Auto negotiation Yes
Auto crossover Yes
IP address Freely configurable
1)
Subnet Mask Freely configurable
1)
Supported protocols
Safety-related: safeethernet, PROFIsafe
Standard protocols: Programming and debugging tool (PADT),
OPC, Modbus TCP, TCP-SR, SNTP, ComUserTask,
PROFINET
1)
The general rules for assigning IP address and subnet masks must be adhered to.
Table 9: Ethernet Interfaces Properties
Two RJ-45 connectors with integrated LEDs are located on the top and on the bottom left-
hand side of the housing. Refer to Chapter
3.4.1.3 for a description of the LEDs' function.
The connection parameters are read based on the MAC address (media access control
address) defined during manufacturing.
CPU and COM have their own MAC addresses. The CPU MAC address is specified on a
label located above the two RJ-45 connectors (1 and 2).

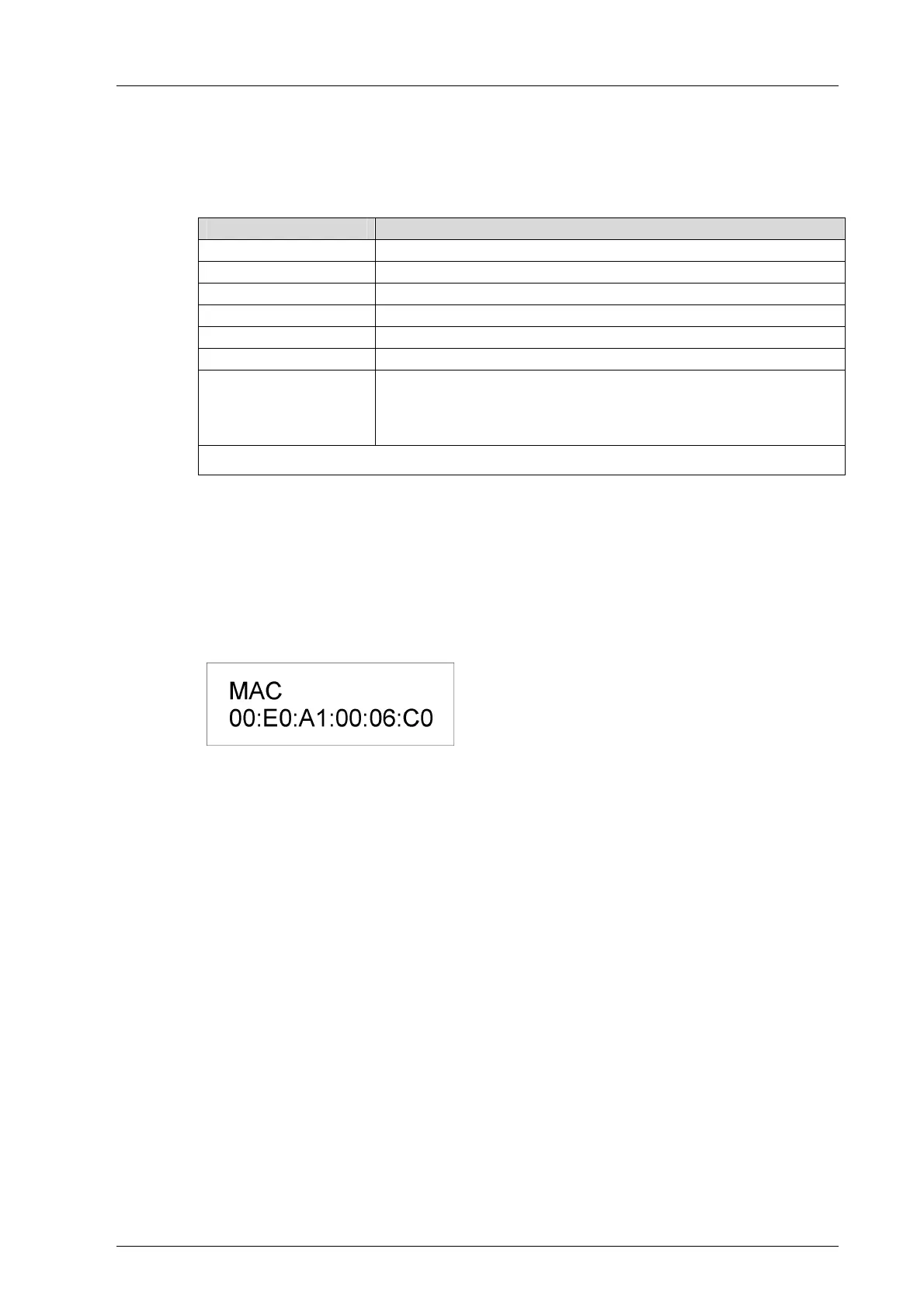

Figure 7: Sample MAC Address Label
The COM MAC address corresponds to the CPU MAC address, except for the last byte
witch is increased by 1.
Example:
CPU MAC address: 00:E0:A1:00:06:C0
COM MAC address: 00:E0:A1:00:06:C1
The controller is equipped with an integrated switch for Ethernet communication. For further
information on the integrated switch and safeethernet, refer to Chapter Communication of
the System Manual for Compact Systems (HI 800 141 E).
