Concept for HIQuad
X
System
Page
16
of
110
HI
803
211 E Rev. 1.01.00
System bus interf
aces on the rear side of
the ba
se rack

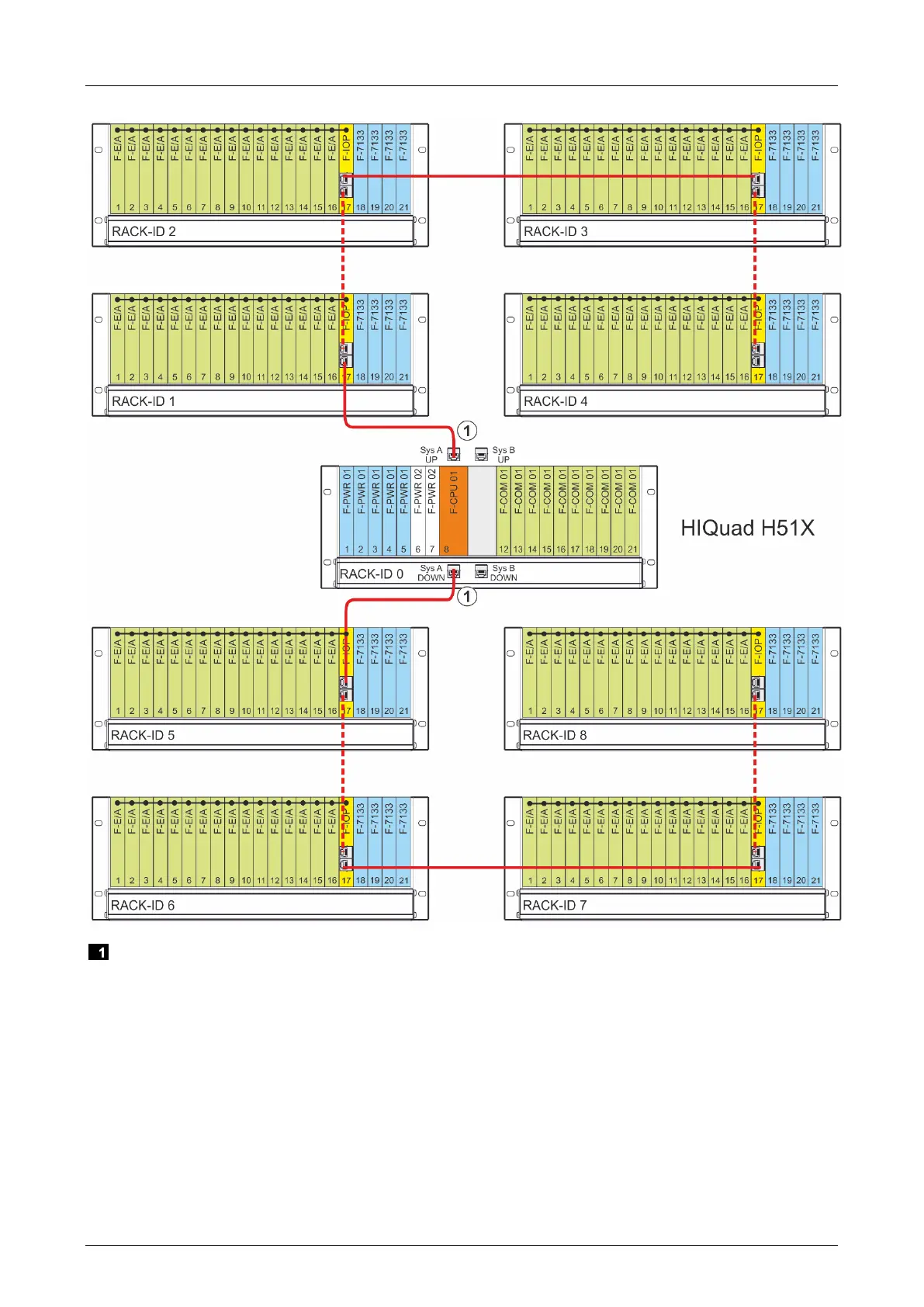

Figure 3:
Example of H51X Mo
no S
ystem
The rack IDs
do not necessarily have to be
arranged as descr
ibed above, but they m
ust be
unique.
To ensure a clearer o
verview, HIMA recom
mends the follo
wing:
Arrange the rac
k IDs in accordance
with Fig
ure 3.
Use red patc
h cables for s
ystem bus A if onl
y system bus A is used.
15
