Chapter 3 Measurement Procedures
――――――――――――――――――――――――
NOTE

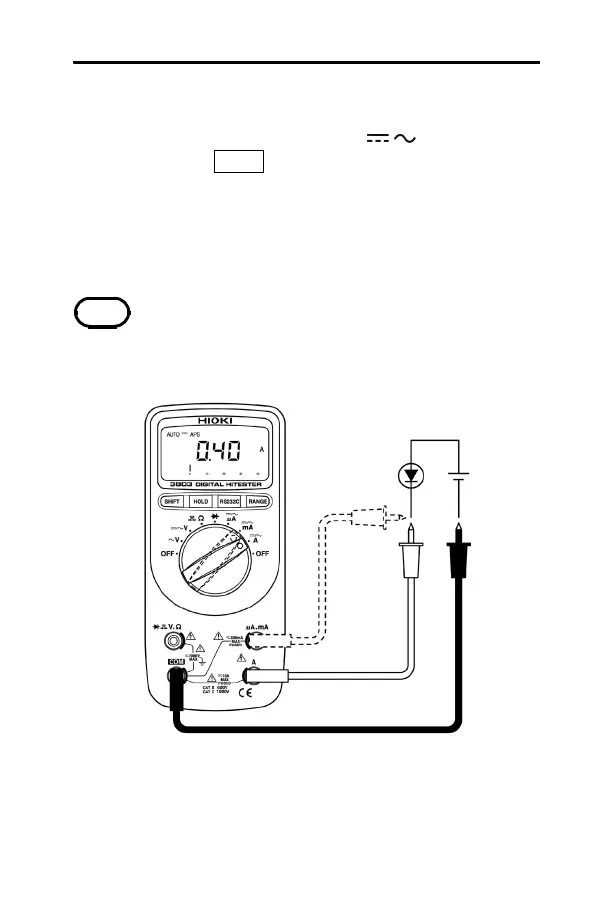

3.5.2 DC Current Measurement
(1) Set the rotary switch to "
/ A ".
(2) Push
SHIFT
button momentarily to set DC test.
(3) Connect the black test lead to "COM" terminal
and red test lead to "A" terminal.
(4) Touch the test leads to the test points and read
the display.
If the reading is lower than 400 mA, to get better
resolution of display, please turn the rotary switch to
mA or μA position and remove the red test lead to
"μAmA" terminal.
