Waveform/Analog Output (Waveform and D/A Output Option)
Output retained
Output retained
Time
Output retained
(3)
(4)
(1)
+5 V
0 V
−5 V
(2)
Hold
Integration
reset
Integration
stop
Integration
stop
Integration
start
Integration
restart
Integration
restart
Hold
canceled
Hold
Integration
start
Integration
stop

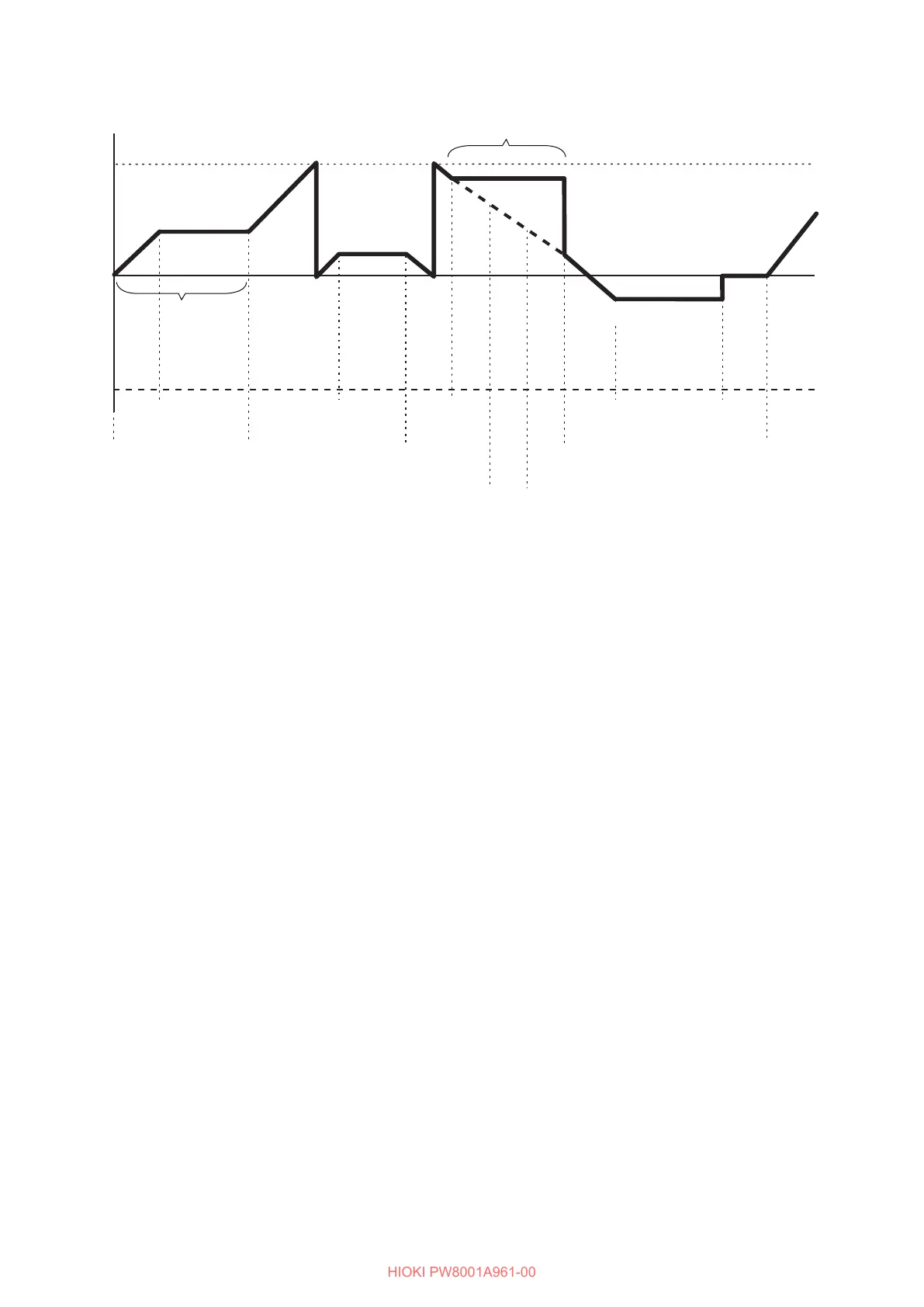

(1) Analog output varies with the start of integration. Analog output is retained when integration
stops.
(2) If the voltage for the integrated value exceeds
±
5 V, analog output will switch to 0 V before
continuing to vary again.
(3) Analog output is retained when the display is frozen during integration. When the hold
operation is canceled, analog output will vary based on the original integrated value.
(4) When the integrated value is reset, analog output will switch to 0 V.
To Next Page
