Example Measurement Setups
1.6 Example Measurement Setups

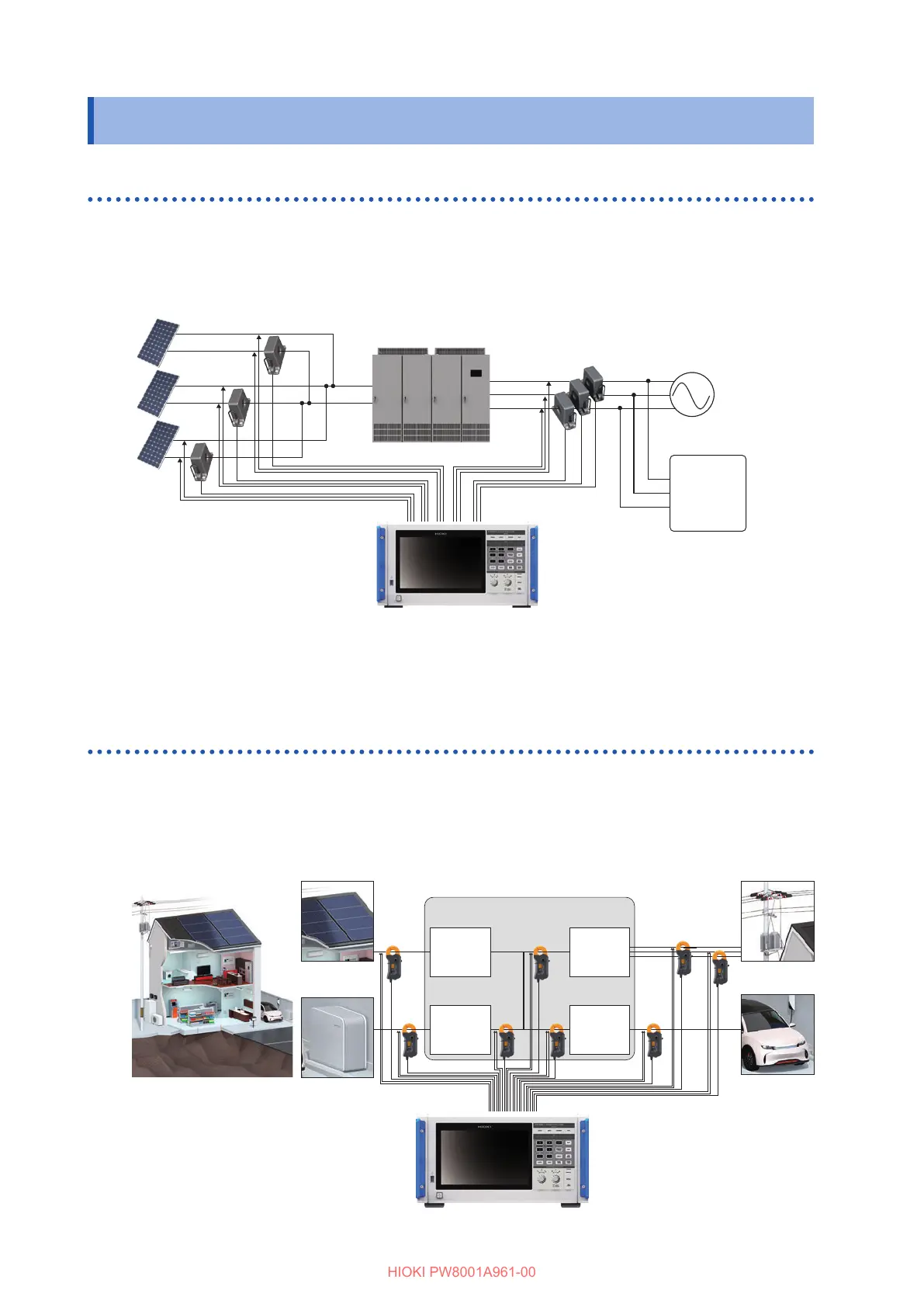

Measuring e󰀩ciency of power conditioners
The instrument can be used e󰀨ectively from R&D of power conditioners to performance assessment
at the time of shipping inspections.
Power conditioner
Load
Power system
AC measurement
DC measurement
Solar panels
Evaluating the performance of a power interchange system with a
power conditioner
Since the instrument can simultaneously and accurately measure power at multiple points, such
as the input and output of DC-DC converters, inverters, and accumulators, it is e󰀨ective for the
performance evaluation of power conditioners.
Power conditioner
Bidirectional
DC-DC
Step-up
DC-DC
Bidirectional
Inverter
Power systems
EV
Solar panels
Electricity
storage
Bidirectional
DC-DC
