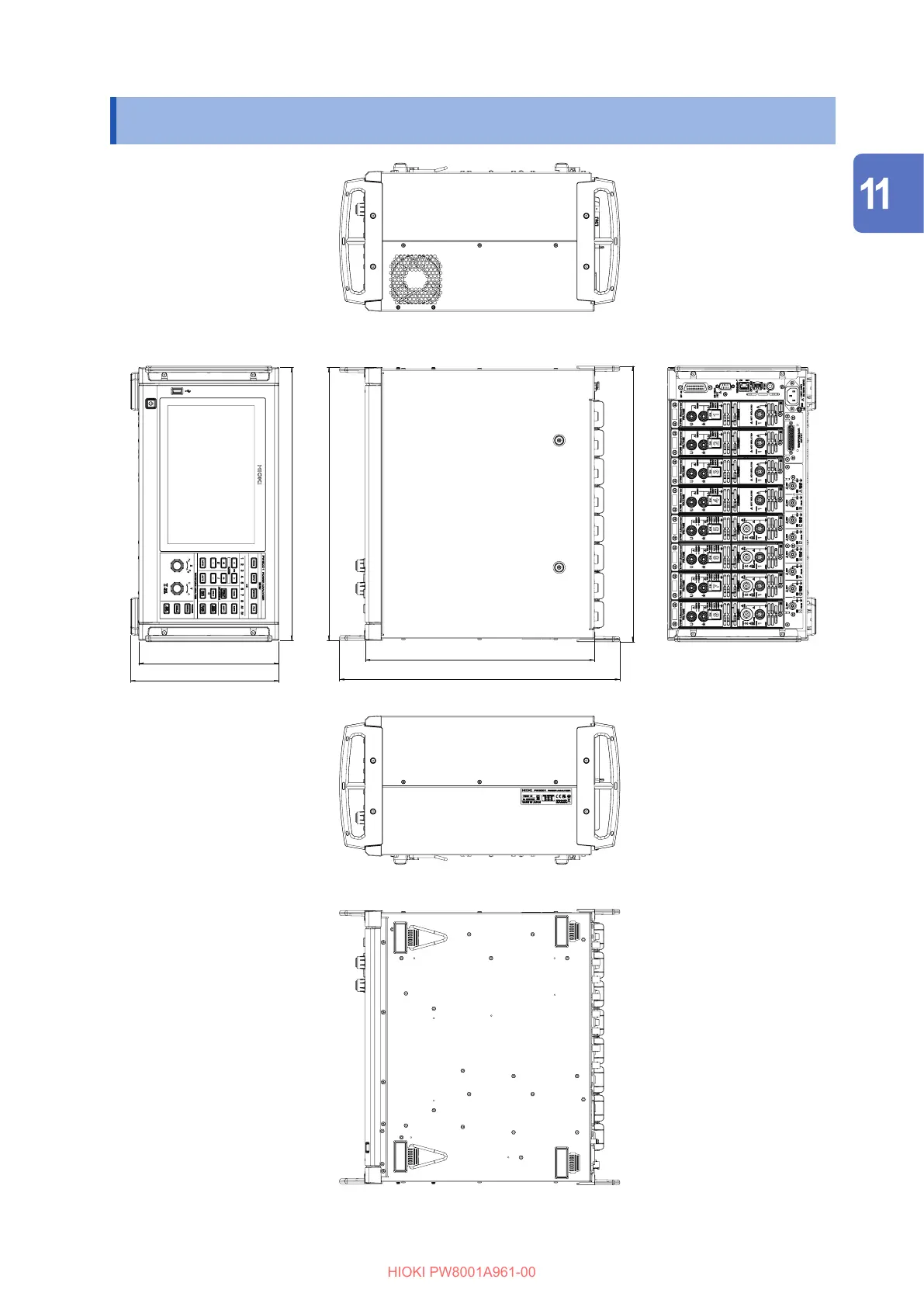

External View

11.6 External View

442

±2

361

±2

434

±2

234

±2

221

±2

430

±2

430

±2

(Unit: mm)
