Measuring Power
Rectication method
This section describes how to select the rectication method for voltage values and current values
used to calculate apparent power, reactive power, and power factor.
You can select a rectication method for each wiring conguration’s voltage and current
independently.

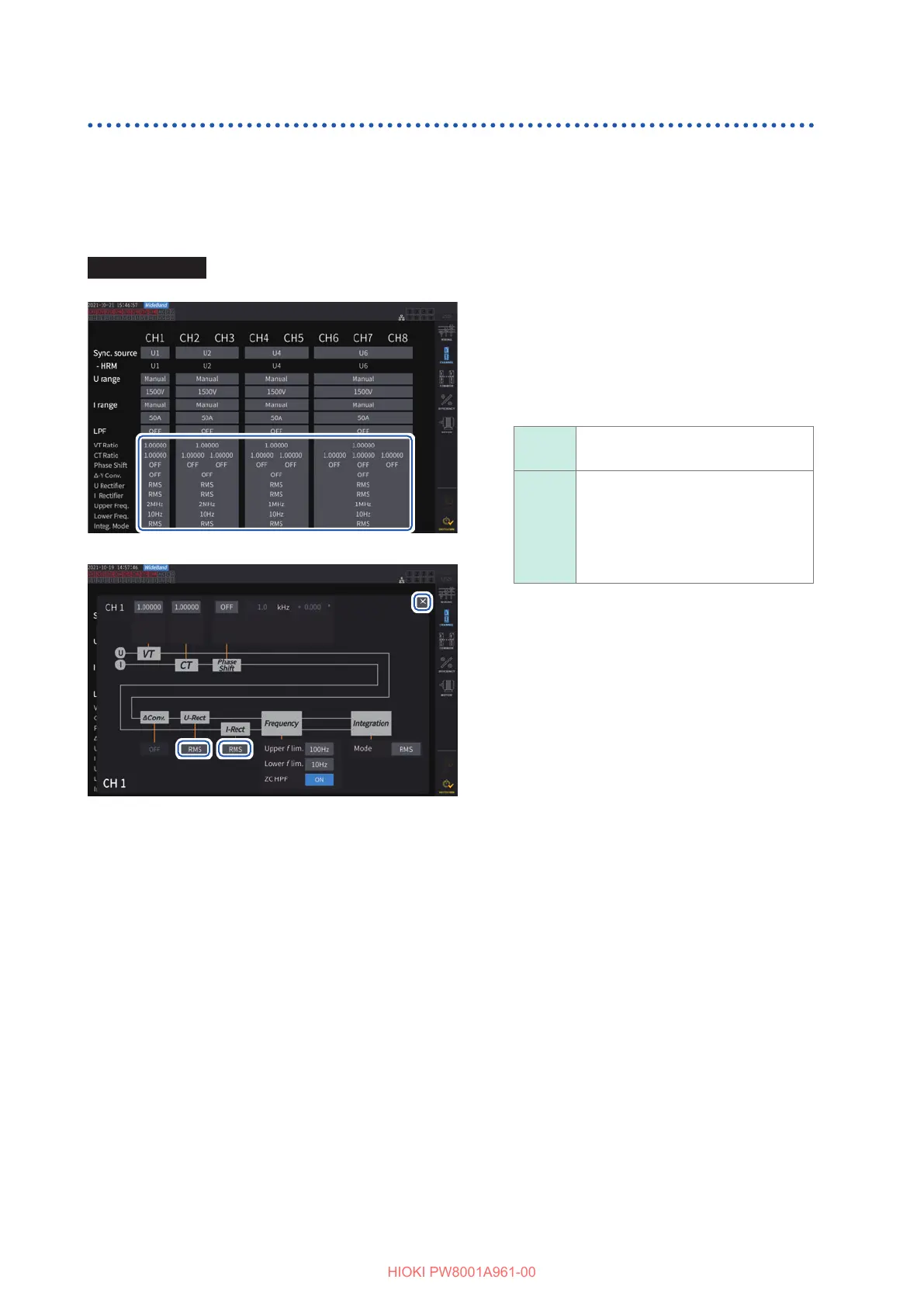

Display screen [INPUT] > [CHANNEL]
11
1
To open the settings window, tap the
channel detailed display area.
2
Tap the [U-Rect] box, then select the
rectier from the list.
RMS
(True RMS value)
Select this setting for ordinary use.
MEAN
(RMS equivalent of average rectied
value)
In general, this setting is only used
when line voltage with a PWM
waveform on the secondary side of
an inverter is measured.
3
Tap the [I-Rect] box, then select the
rectier from the list.
4
Tap [
×
] to close the setting window.
22
33
44
