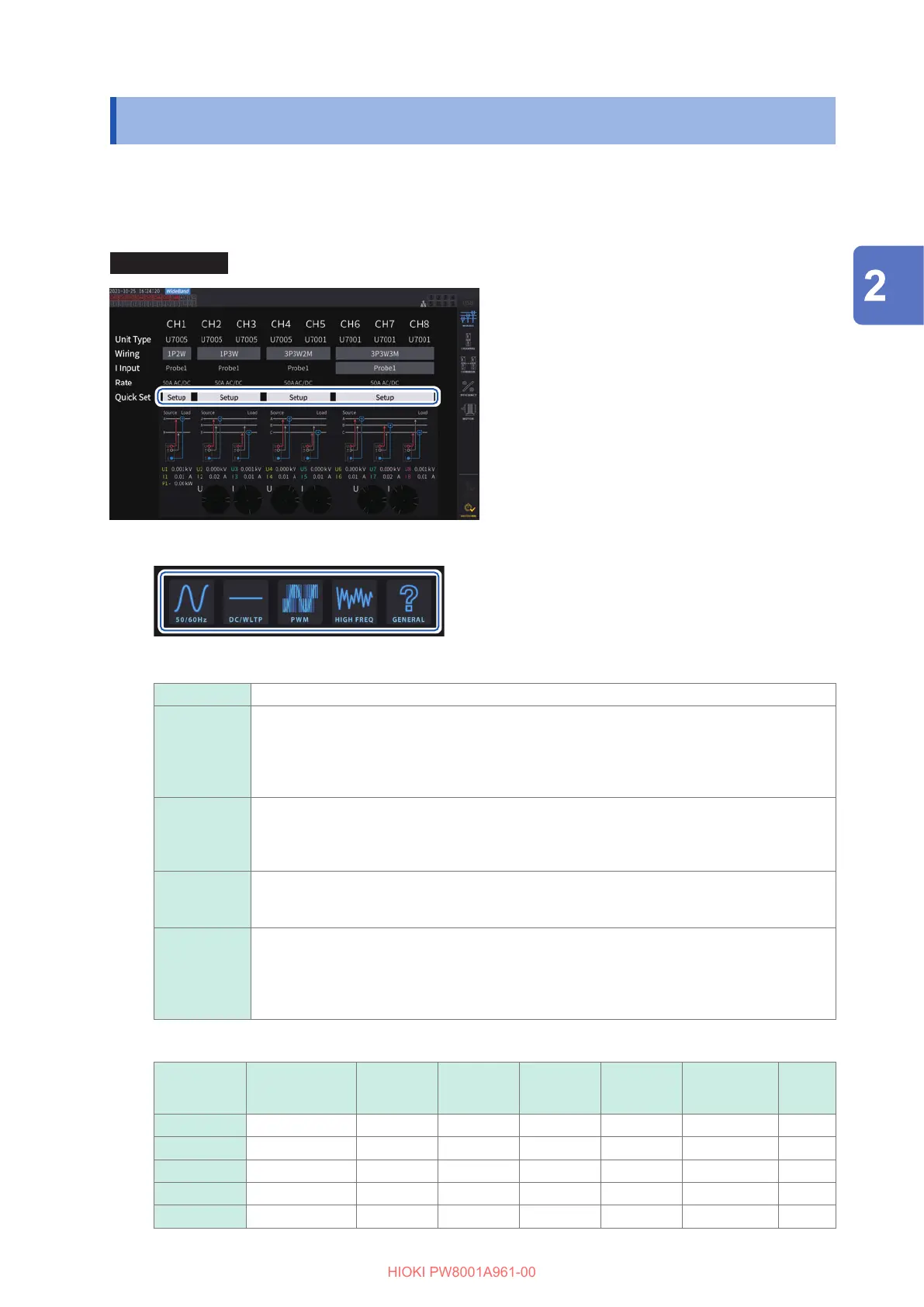

45
Simple Conguration (Quick Set)
2.6 Simple Conguration (Quick Set)
The measurement conditions are set to the representative values according to the selected lines
to be measured. This functionality is useful when you are using the instrument for the rst time or
when you need to measure lines that di󰀨er from those measured last.
Display screen [INPUT] > [WIRING]
11
1
Tap [Setup] in the [Quick Set] box.
2
Touch the type of the line to be
measured to select it from the list.
A conrmation window will open.
3
Tap [Yes] to accept the setting.
4
Check the setting details on [INPUT] >
the [CHANNEL] screen.
Change the settings as necessary.
22
Types of lines under measurement
50/60Hz Select this type to measure a commercial power line over a broad range of frequencies.
DC/WLTP
Select this type to measure DC line over a broad range of frequencies. The settings are
suitable for measuring the charging/recharging cycle of a battery or a DC line, specied in
the worldwide harmonized light vehicles test procedure (WLTP). When making measurement
in conformity with WLTP, set the data refresh interval at 50 ms or less.
This setting is selectable only in 1P2W wiring mode.
PWM
Select this type to measure a PWM line. A fundamental frequency of 1 Hz to 1 kHz is used
so that it does not synchronize with the carrier frequency of 1 kHz or more.
It is recommended to use the sensor phase correction function to facilitate more accurate
measurement.
HIGH FREQ
Select this type to measure a high-frequency source with a frequency of at least 10 kHz.
It is recommended to use the sensor phase correction function to facilitate more accurate
measurement.
GENERAL
Select this type to measure lines other than the [50/60Hz], [DC/WLTP], [PWM], or
[HIGH FREQ] type. Also use this setting when the object under measurement is not well
known.
It is recommended to use the sensor phase correction function to facilitate more accurate
measurement.
Setting details
Lines under
measurement
Sync. source
Current
range
Upper
frequency
limit
Lower
frequency
limit
Integration
mode
U/I
rectication
method
LPF
50/60Hz
Voltage Automatic 100 Hz 10 Hz RMS RMS/RMS OFF
DC/WLTP
DC Automatic 100 Hz 10 Hz DC RMS/RMS OFF
PWM
Voltage Automatic 1 kHz 1 Hz RMS MEAN/RMS OFF
HIGH FREQ
Voltage Automatic 1 MHz 1 kHz RMS RMS/RMS OFF
GENERAL
Voltage Automatic 1 MHz 0.1 Hz RMS RMS/RMS OFF
Preparing for Measurement
HIOKI PW8001A961-00
