Setting up the Configuration
Environment
Basic Configuration
Release
6.0
07/2010
A.1
Setting up a DHCP/BOOTP Ser-
ver
219

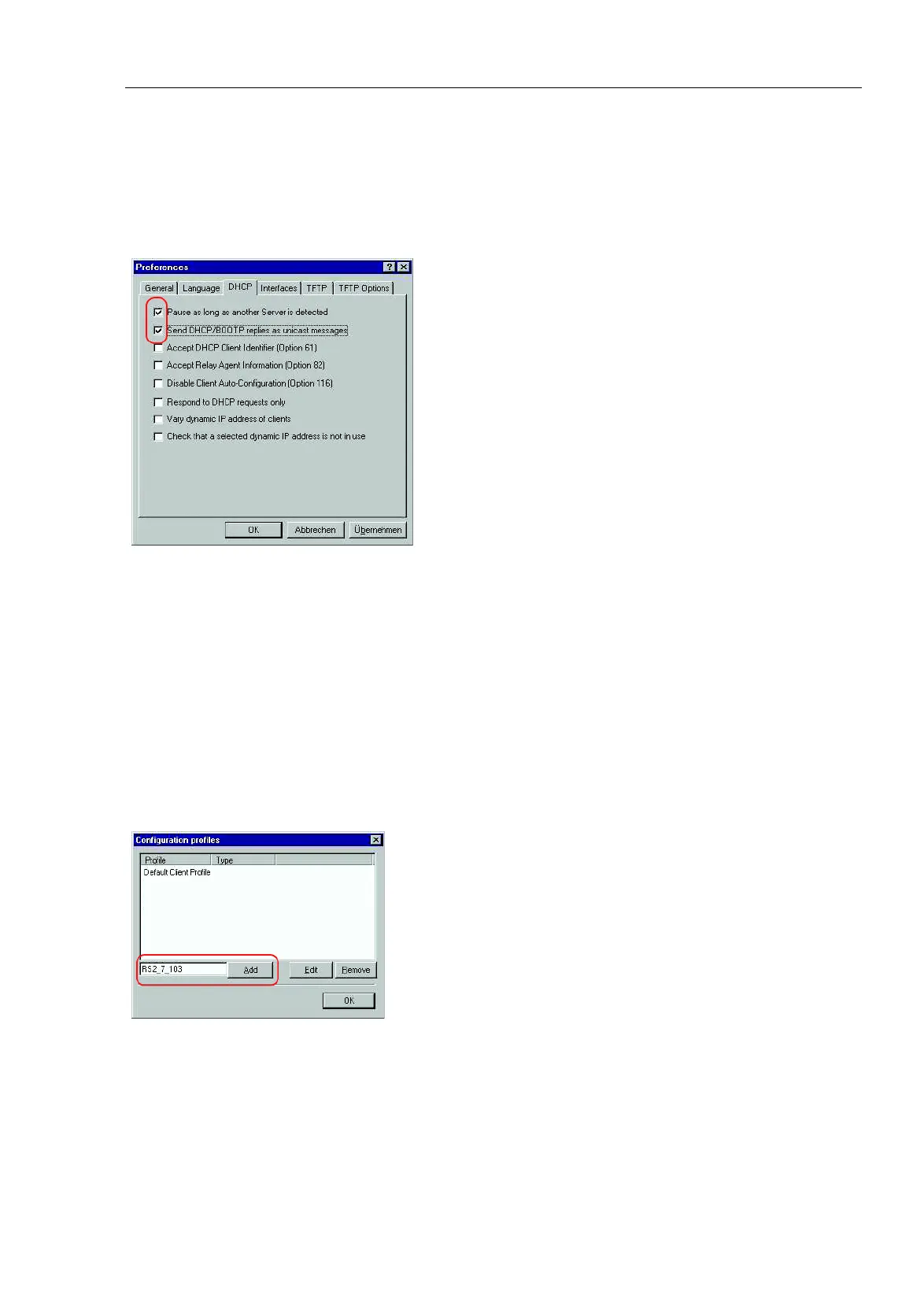

Enter the settings shown in the illustration and click
OK
.
Figure 61:
DHCP setting
To enter the configuration profiles, select
Options:Configuration
Profiles
in the menu bar.
Enter the name of the new conf
iguration profile and click
Add
.
Figure 62:
Adding configuration profiles
Enter the network mask and click
