MACH 100
Release 07/09
Note: You will find the order number for the terminal cable, which is or-
dered separately, in the Technical Data chapter (see on page 35 „Tech-
nical data“).
2.4 Disassembly
 Disassembling the device
 To detach the device from the switch cabinet or the wall, remove the
screws from the brackets on the device.

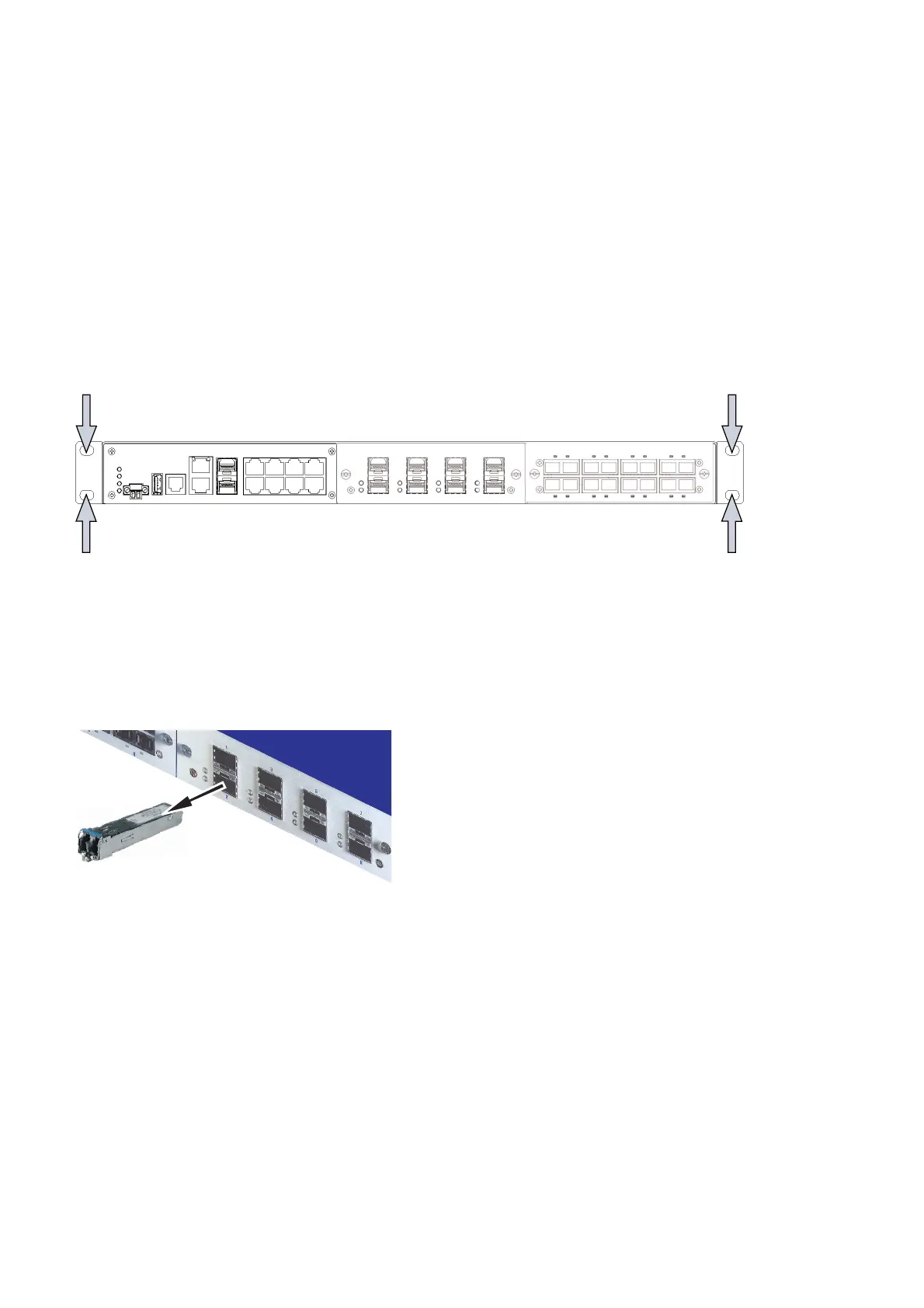

Figure 23: Disassembly
 Disassembling the SFP modules
 Pull the SFP module by the opened lock out of the socket.
 Close the socket with the protective cap.
Figure 24: Disassembling an SFP module
