28
MACH 100
Release
07/09

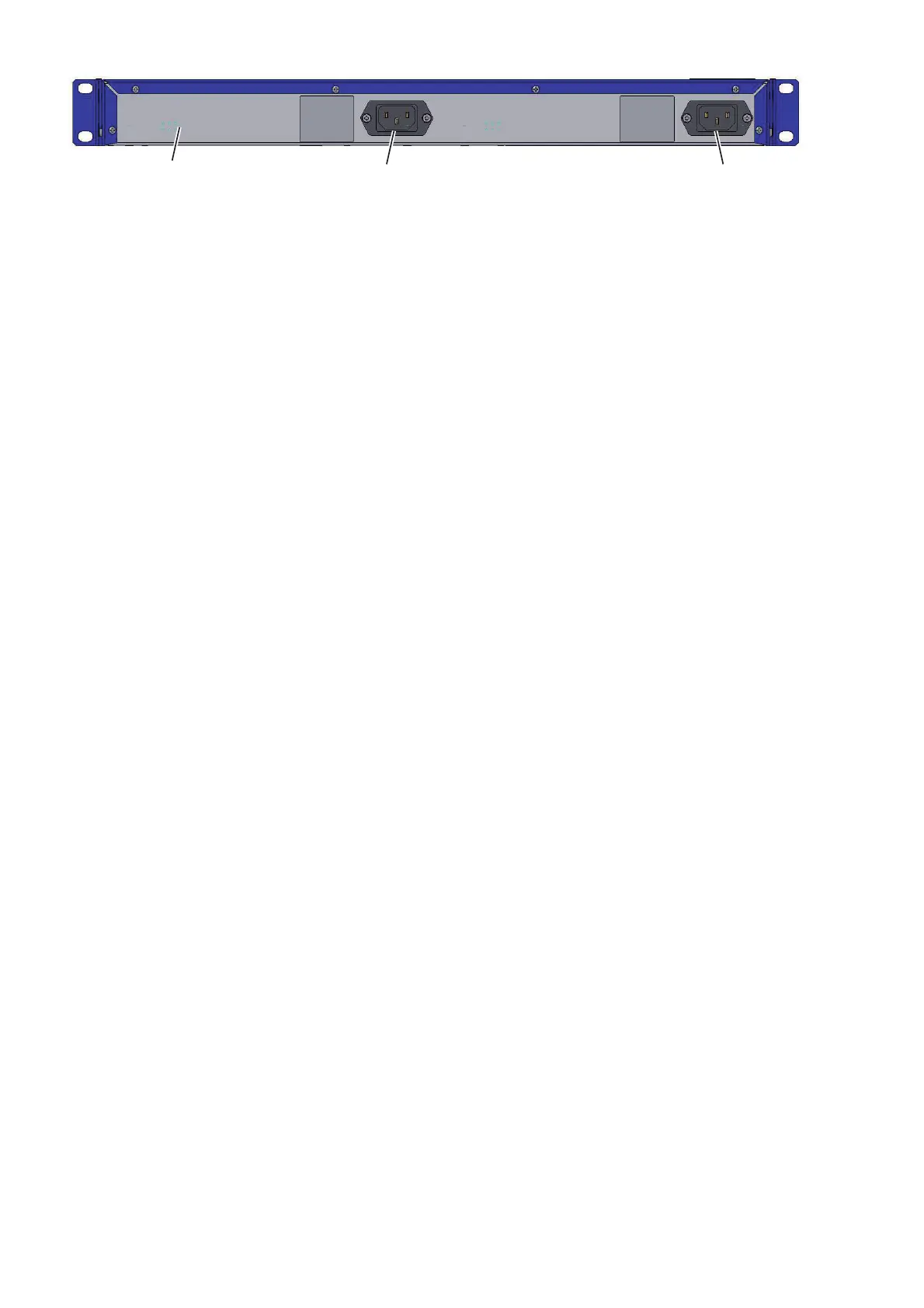

Figure 18: Connections for the MACH 102-8TP-R, MACH 102-8TP-FR and
MACH 102-24TP-FR on the back of the device
1 - MACH 102-8TP-R, MACH 102-8TP-FR or MACH 102-24TP-FR device
2 - Redundant power supply 100 - 240 V AC
3 - Standard power supply 100 - 240 V AC
Note: With non-redundant supply of the main voltage, the device reports
a loss of power. You can avert this message by applying the supply volt-
age via both inputs, or by changing the configuration in the Management.
2.1.8 Startup procedure
By connecting the voltage supply via the voltage supply socket(s), you start
the operation of the device.
2.1.9 Installing the data lines
10/100 Mbit/s twisted pair connection
10/100 Mbit/s ports (RJ45 or M12 sockets) enable the connection of
terminal devices or independent network segments according to the IEEE
802.3 100BASE-TX / 10BASE-T standards.
These ports support:
X Autonegotiation
X Autopolarity
X Autocrossing (if autonegotiation is activated)
X 100 Mbit/s half duplex, 100 Mbit/s full duplex,
X 10 Mbit/s half duplex, 10 Mbit/s full duplex.
Default settings: autonegotiation activated.
The socket housings are electrically connected to the front panel.
